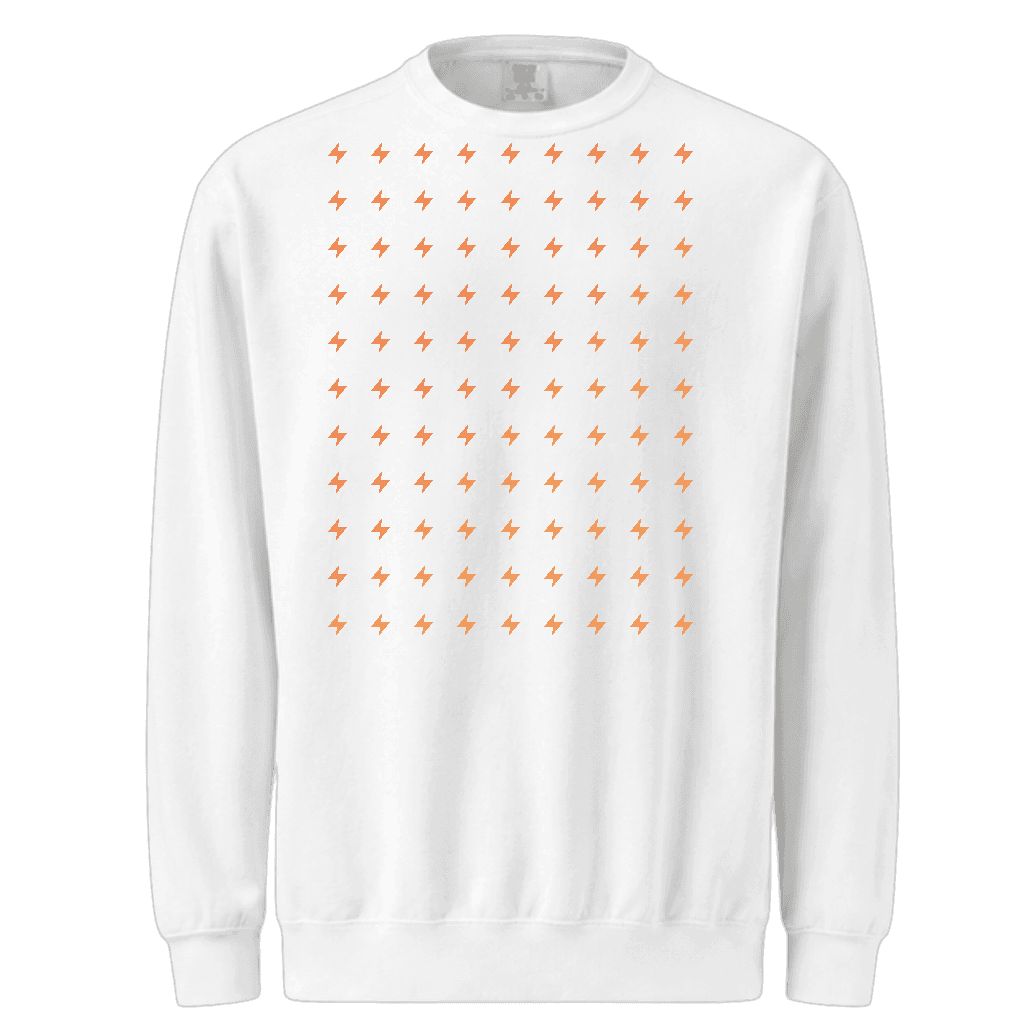

Loading the 3D model of Comfort Colors 1566 Garment-Dyed Crewneck Sweatshirt, size M

Colour White
Presets

Direct-to-garment print · sewn in 3D, S to 3XL · size M: model r3, Oct 21, 2026

Comfort Colors / 1566 · Adult / Unisex

Comfort Colors 1566 Adult Crewneck Sweatshirt

Garment-dyed crewneck fleece sweatshirt · 3D model, sizes S to 3XL

A 3D model to build from.

Use the documented construction, materials and measurements to scope a digital garment or product visualization workflow. Confirm asset access and validation for your application.

Side-seamed relaxed body, forward-rolled shoulder, set-in sleeves, 1x1 rib collar/cuffs/waistband, double-needle seams, twill-taped back neck, back neck patch, sewn-in twill label.[1][3][4]

Understand the constructionComponents, seams and material specifications ↗Work from measured proportionsSeparate body and finished garment references ↗Scope your digital garmentAsset access, usage rights and validation ↗
Design on it in Studio →

Give your agent the context.

Copy this brief into your agent. It includes selection guidance, tradeoffs and links to the full evidence.

Comfort Colors 1566 Adult Crewneck Sweatshirt · Full Markdown ↗

On a person

The 3D, rendered on our wearer.

Size S, the blank in white, rendered from its 3D on our wearer: renders, not photographs.

Comfort Colors 1566 Garment-Dyed Crewneck Sweatshirt, size S, Front view on a personFrontComfort Colors 1566 Garment-Dyed Crewneck Sweatshirt, size S, Side view on a personSideComfort Colors 1566 Garment-Dyed Crewneck Sweatshirt, size S, Back view on a personBackComfort Colors 1566 Garment-Dyed Crewneck Sweatshirt, size S, Close-up view on a personClose-up

3D file

Take the 3D with you.

The sewn model at full resolution, in metres, as a GLB: its thickness, rib, drawcords and topstitching, laid out to print on, with a material for each colour. Not the sewing pattern.

A mockup generator, a SaaS or an API, or AI training: by contract only, write to us. Neither licence lets you share or resell the file, or take a pattern from it. The licences · Refunds and cancelling

Your first model is free with an account: one size, Standard licence.

Material specification

Materials by color family.

Compare the composition for the color you have in mind.

Composition
80% cotton / 20% polyester
Fabric weight
322 g/m²
Fabric
3-end garment-dyed ring-spun fleece with a 100% cotton face
Handfeel · source description
Maker: soft, worn-in feel. Buyers split: some call it thick/cozy, others stiff until washed.

Single fabric across all colorways; heathers not offered.

Blue JeanBlue SpruceButterCrimsonDenimFlo BlueGreyLight GreenOrchidPepperSeafoamTrue NavyVioletWatermelonWhiteChalky MintChambrayLagoon BlueTerracottaTopaz Blue

Researched color families, not live supplier stock. Colors can use different blends.

Shape & proportion

Dimensions & size references.

Relaxed fit

Manufacturer range: S · M · L · XL · 2XL · 3XL

The 3D, measured flat · cm
MeasurementSMLXL2XL3XL
Chest width (flat)2.5 cm below the underarm, the front and back averaged53.358.462.566.370.274.0
Body length (from HPS)from the high point of the shoulder to the hem, with its waistband folded64.466.969.572.074.677.1

Catalog size chart and Research reference 3 and Research reference 5 measure 5.4 to 5.5 cm longer than the 3D. Research reference 5 measures 0.9 to 2.6 cm wider in the chest than the 3D.

Each source is kept separate. Body measurements and finished garment measurements are not interchangeable.

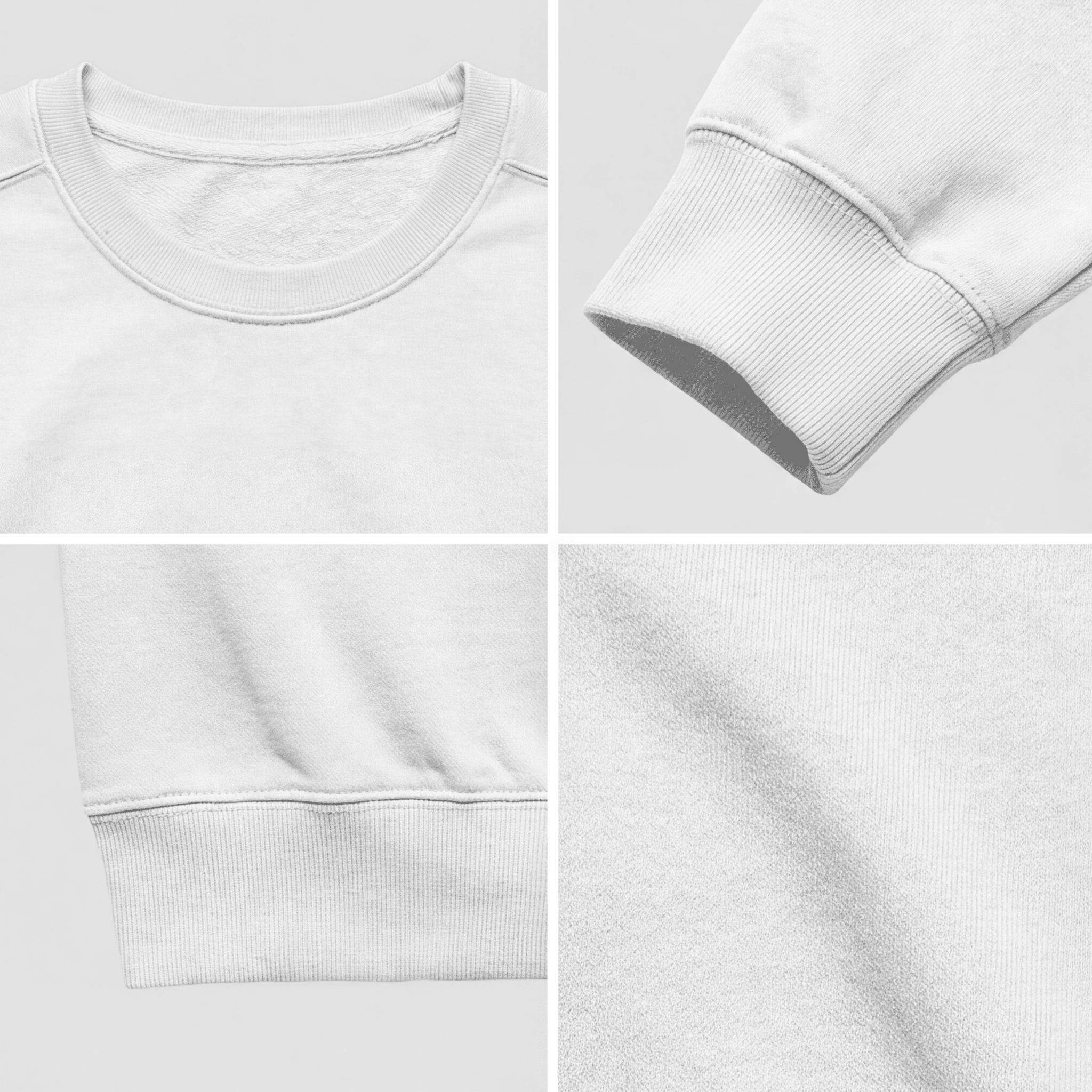

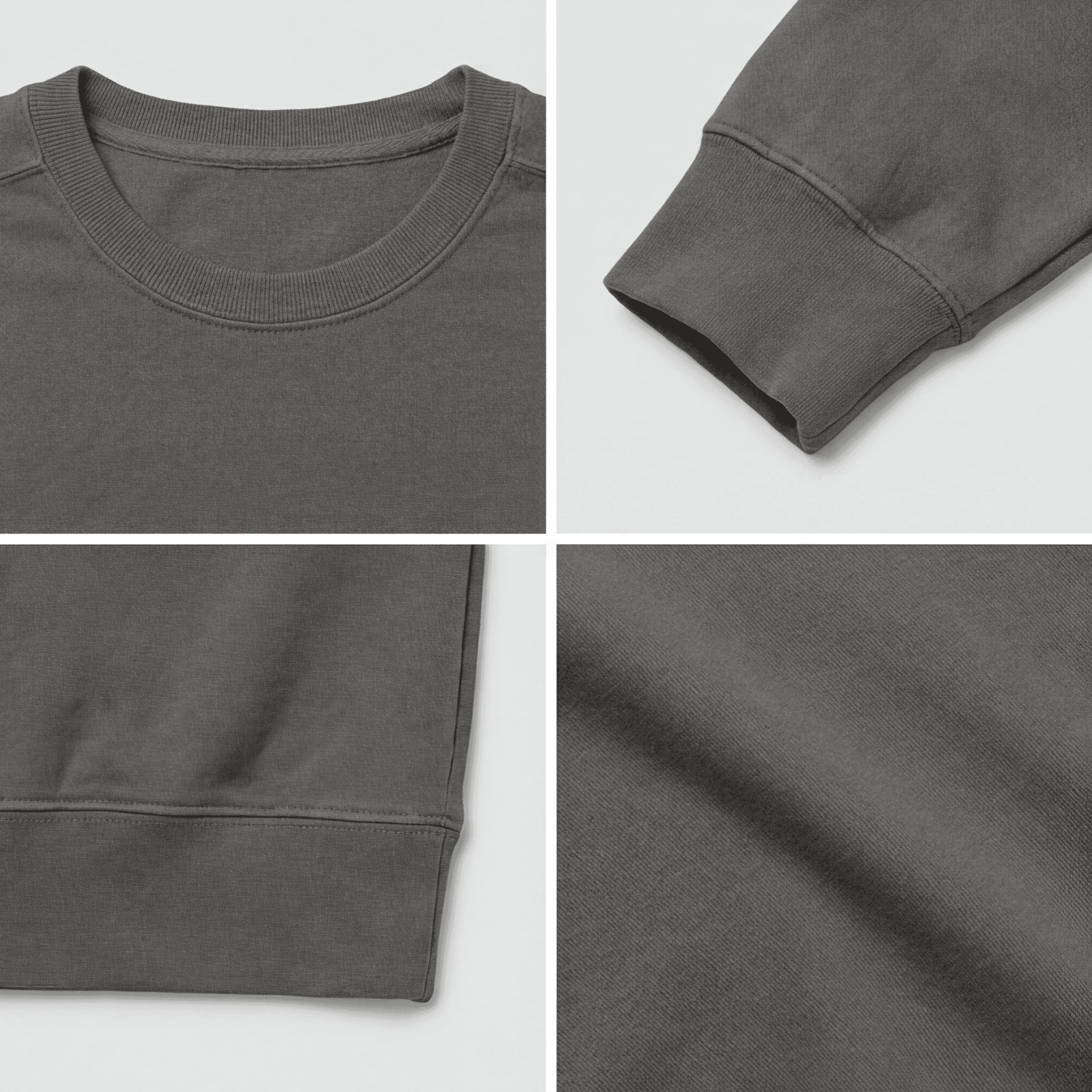

Details that matter

How it is made.

Fabric
3-end garment-dyed ring-spun fleece, 100% cotton face
Body
Relaxed fit, side-seamed
Shoulder
Forward-rolled shoulder
Sleeves
Set-in sleeves

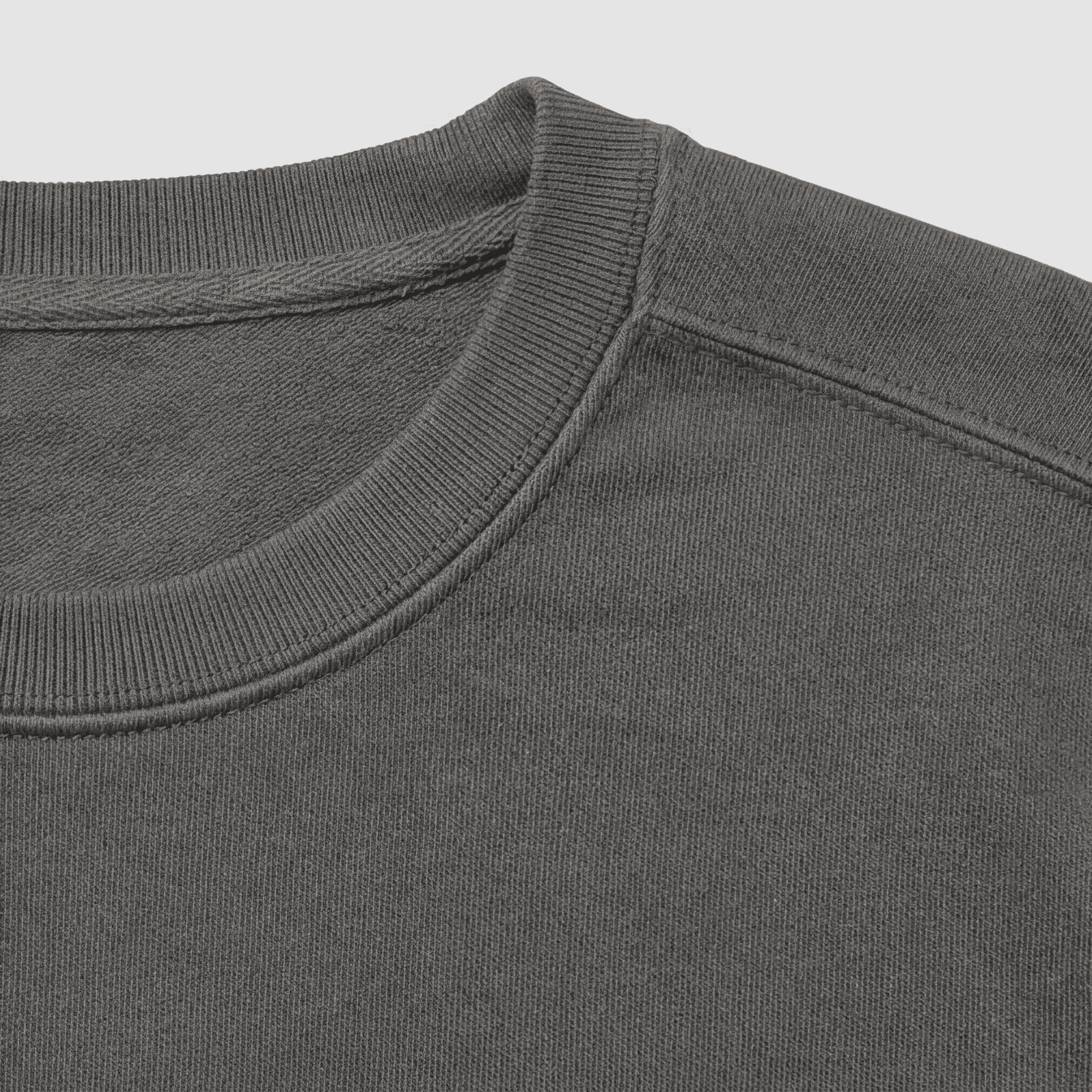

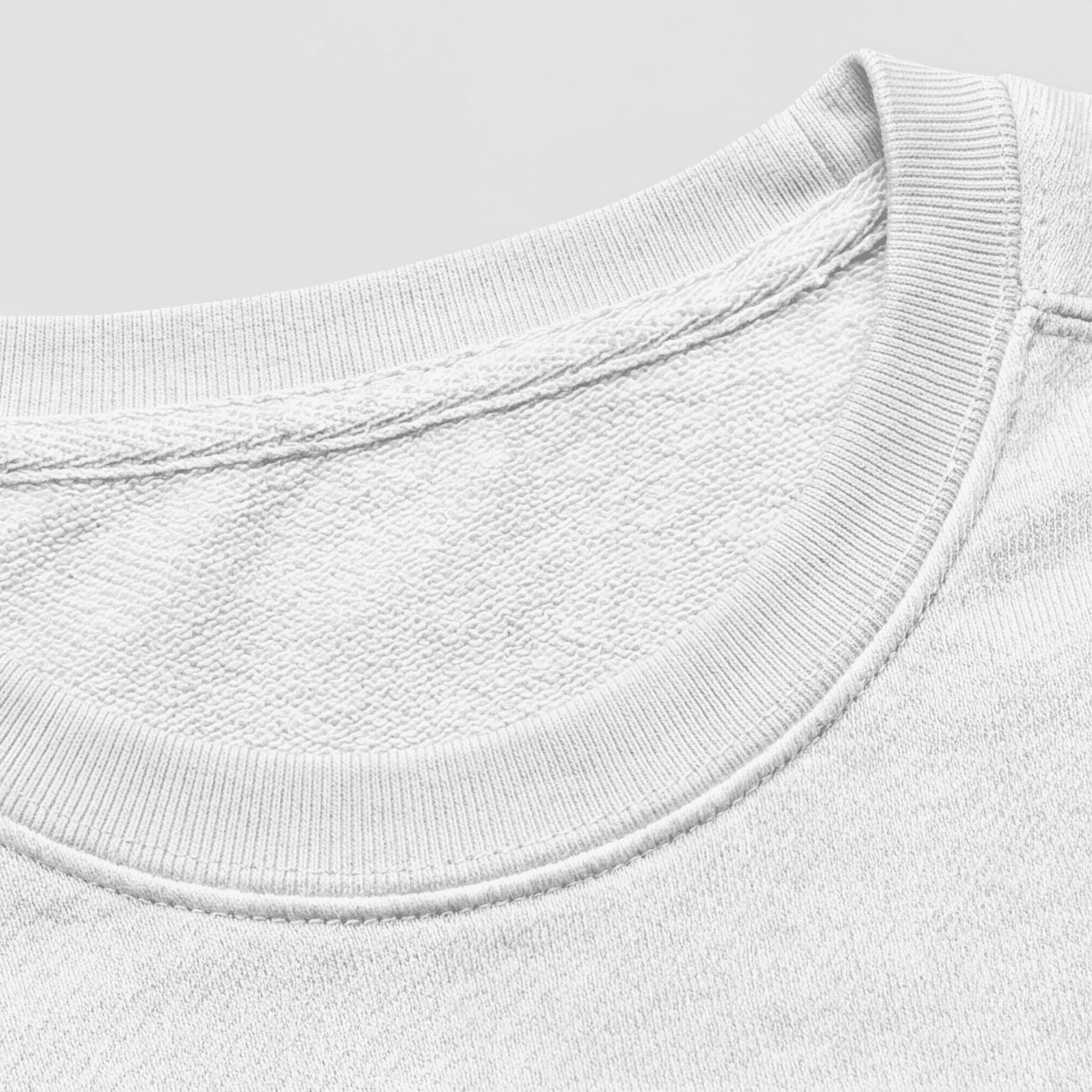

Collar
1x1 rib, double-needle · double-needle
Cuffs
1x1 rib, double-needle · double-needle
Waistband
1x1 rib (relaxed), double-needle · double-needle
Neck tape
Twill tape on inside back neck for durability
Back neck patch
Back neck patch
Label
Sewn-in signature twill label (not tear-away) · twill · not removable
Seams
Double-needle neck, shoulder, armhole, cuffs and waistband · double-needle

Build with this garment

Assets & integration.

Research availability does not establish asset licensing or simulation readiness.

  • Printful product-measure diagram (product 839)image · Rights not documented
Read the API documentation ↗

Check the evidence

Evidence checked Sep 16, 2026

Evidence & validation.

Published specifications and measurements are reference evidence. They do not establish simulation accuracy, manufacturing tolerances or rights to redistribute an asset.

Full research JSON ↗Schema ↗
Research notes & open questions

No GTINs or a source-listed color x size grid were captured.

No standards-based shrinkage, pilling or colorfastness data; only anecdotal claims.

No grade rules, tolerances, MOQ or lead time are available publicly.

No tech pack, sewing pattern or validated 3D mesh found publicly.
