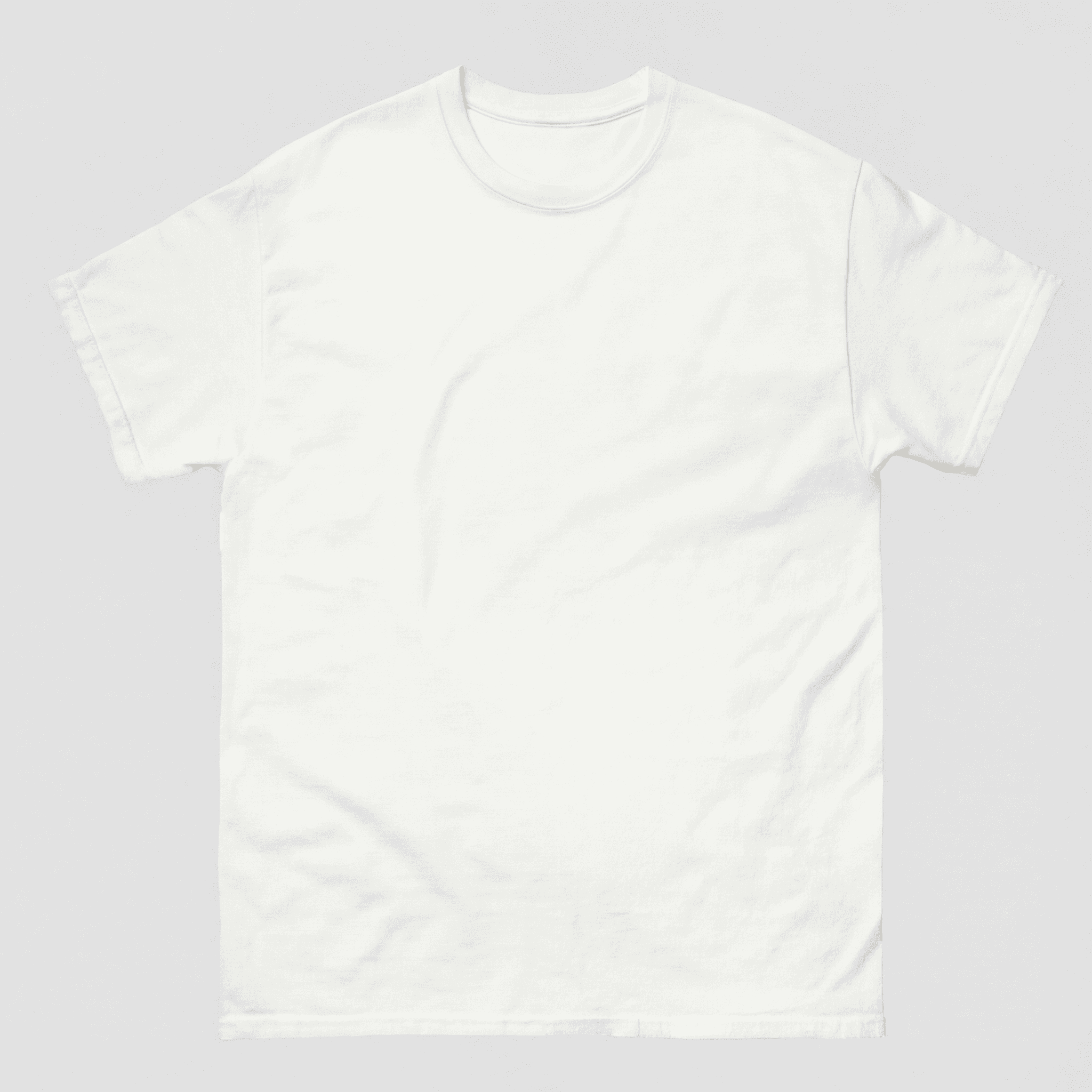

Gildan 5000 Heavy Cotton T-Shirt, White front
Blank · White · frontLarger image ↗

Gildan / 5000 · Adult (marketed unisex by print providers)

Gildan 5000 Heavy Cotton T-Shirt

Short-sleeve crew-neck tee

A reference to build from.

Use the documented construction, materials and measurements to scope a digital garment or product visualization workflow. Confirm asset access and validation for your application.

Seamless rib collar (non-topstitched, 7/8 in), taped neck and shoulders, tubular no-side-seam body, double-needle sleeves and bottom hem, recycled black tear-away label.[1][2][12]

Understand the constructionComponents, seams and material specifications ↗Work from measured proportionsSeparate body and finished garment references ↗Scope your digital garmentAsset access, usage rights and validation ↗
Build around this garment ↗

Give your agent the context.

Copy this brief into your agent. It includes selection guidance, tradeoffs and links to the full evidence.

Gildan 5000 Heavy Cotton T-Shirt · Full Markdown ↗

Material specification

Materials by color family.

Compare the composition for the color you have in mind.

Composition
100% cotton
Fabric weight
180 g/m²
Construction
Tubular, seamless body (no side seams)
Handfeel · source description
Gildan markets a 'remastered' softer cotton; independent reviewers describe open-end fabric as firmer/rougher than ring-spun.

Base fabric for all non-heather colours

AzaleaCardinalCarolina BlueCharcoalDark ChocolateLight BlueNaturalPurpleRoyalSandBlackBrown SavanaDaisyForest GreenGoldHeliconiaIce GreyIrish GreenLight PinkLimeMaroonMilitary GreenNavyOrangeRedSapphireSkyTropical BlueTurf GreenWhiteYellow HazeBerryBlue DuskCardinal RedCobaltCoral SilkCornsilkElectric GreenGarnetGravelIndigo BlueJade DomeKiwiMint GreenOld GoldTennessee OrangeTexas OrangeViolet

Researched color families, not live supplier stock. Colors can use different blends.

Shape & proportion

Dimensions & size references.

Compare measurements with a garment that already fits.

Body measurements · inches
MeasurementSMLXL2XL3XL4XL5XL
Length2829303132333435
Chest34–3738–4142–4546–4950–5354–5758–6162–65
Sleeve length15.631718.52021.522.824.225.3

Each source is kept separate. Body measurements and finished garment measurements are not interchangeable.

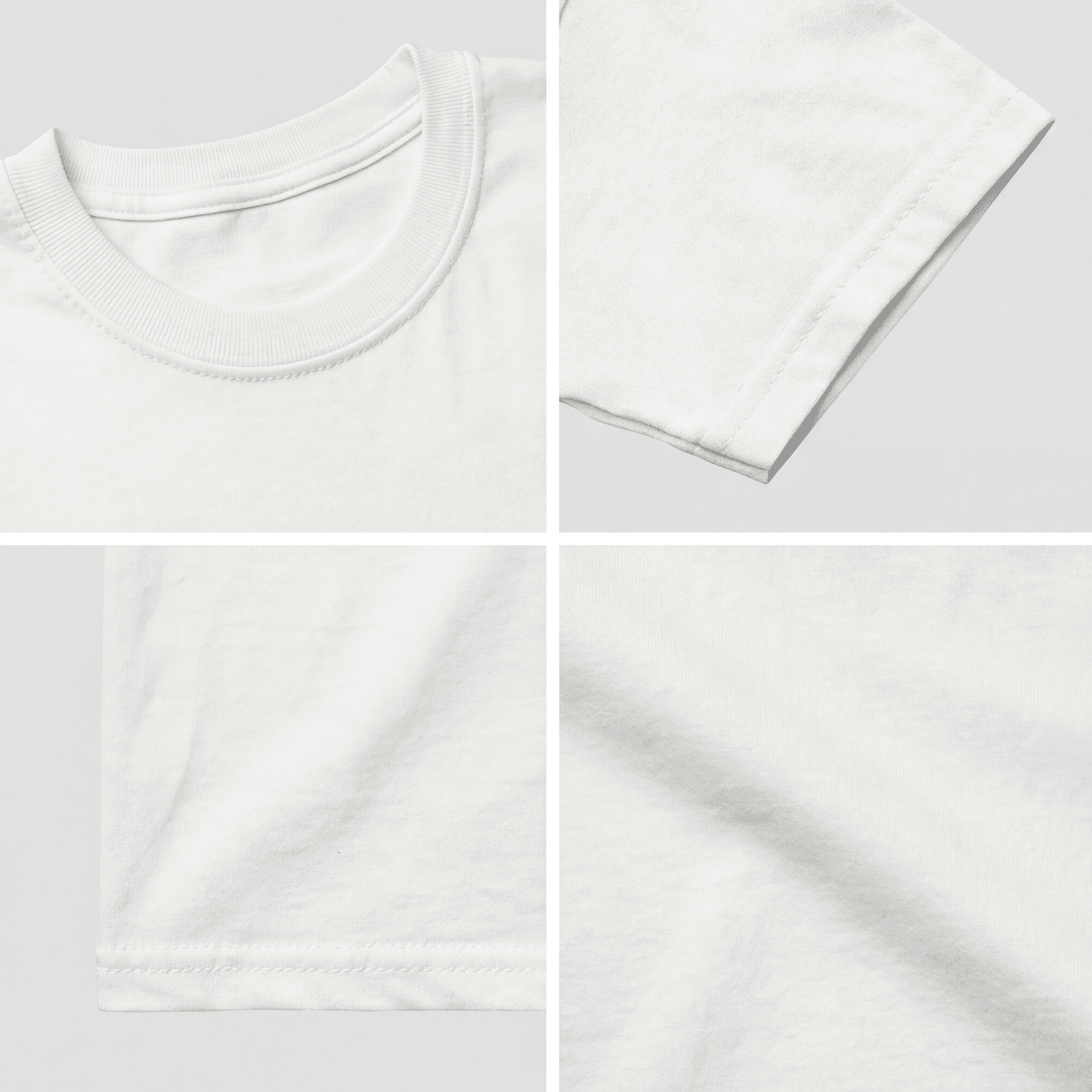

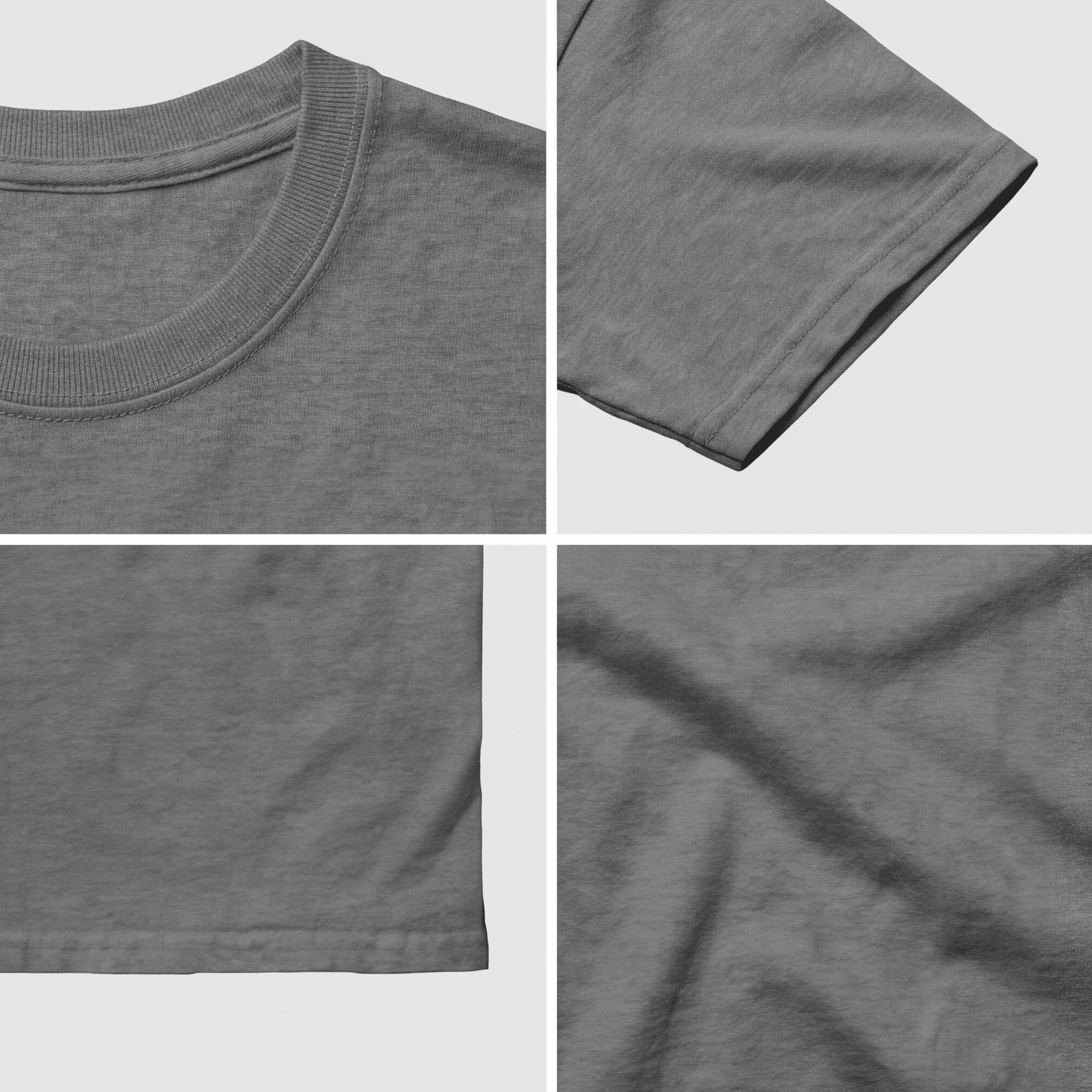

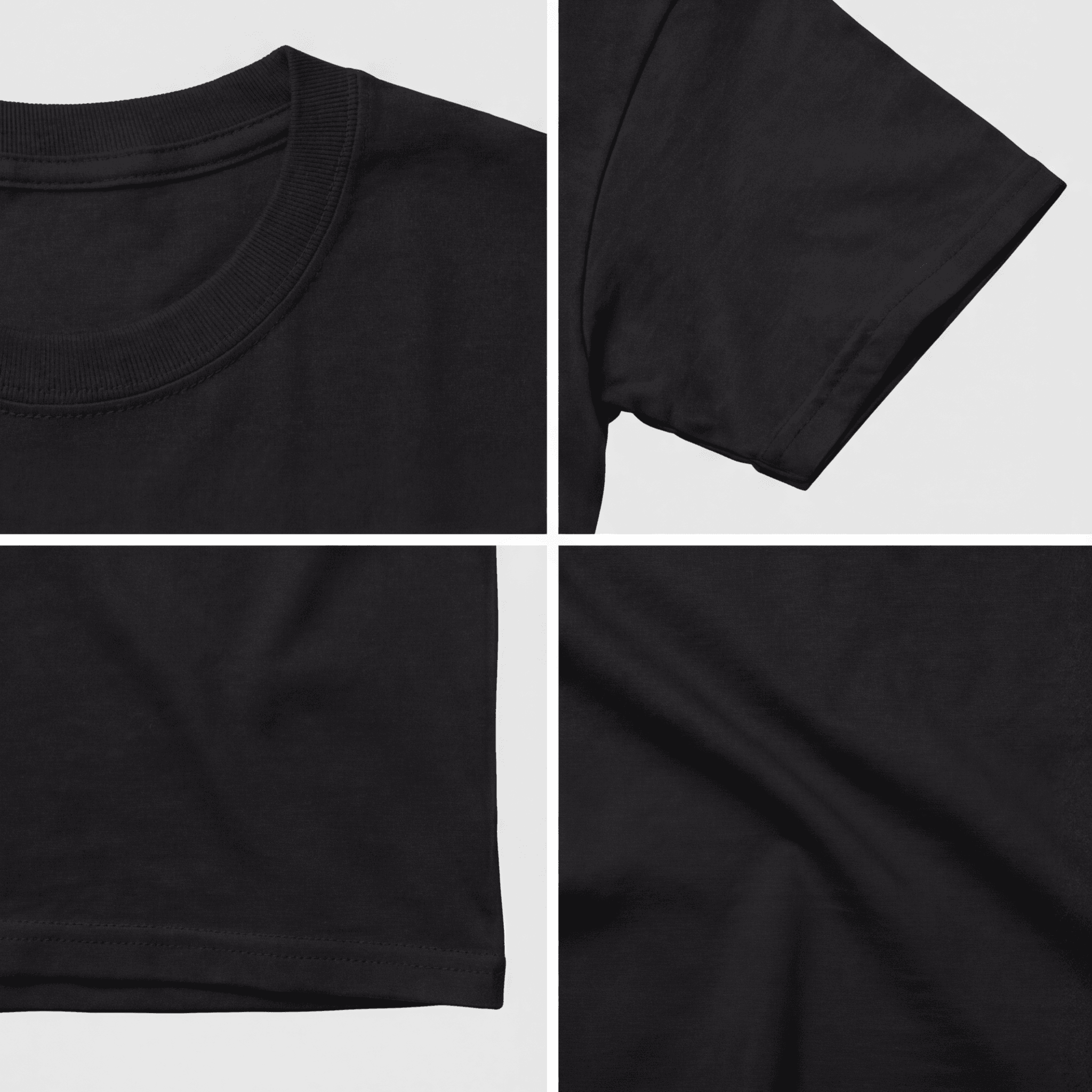

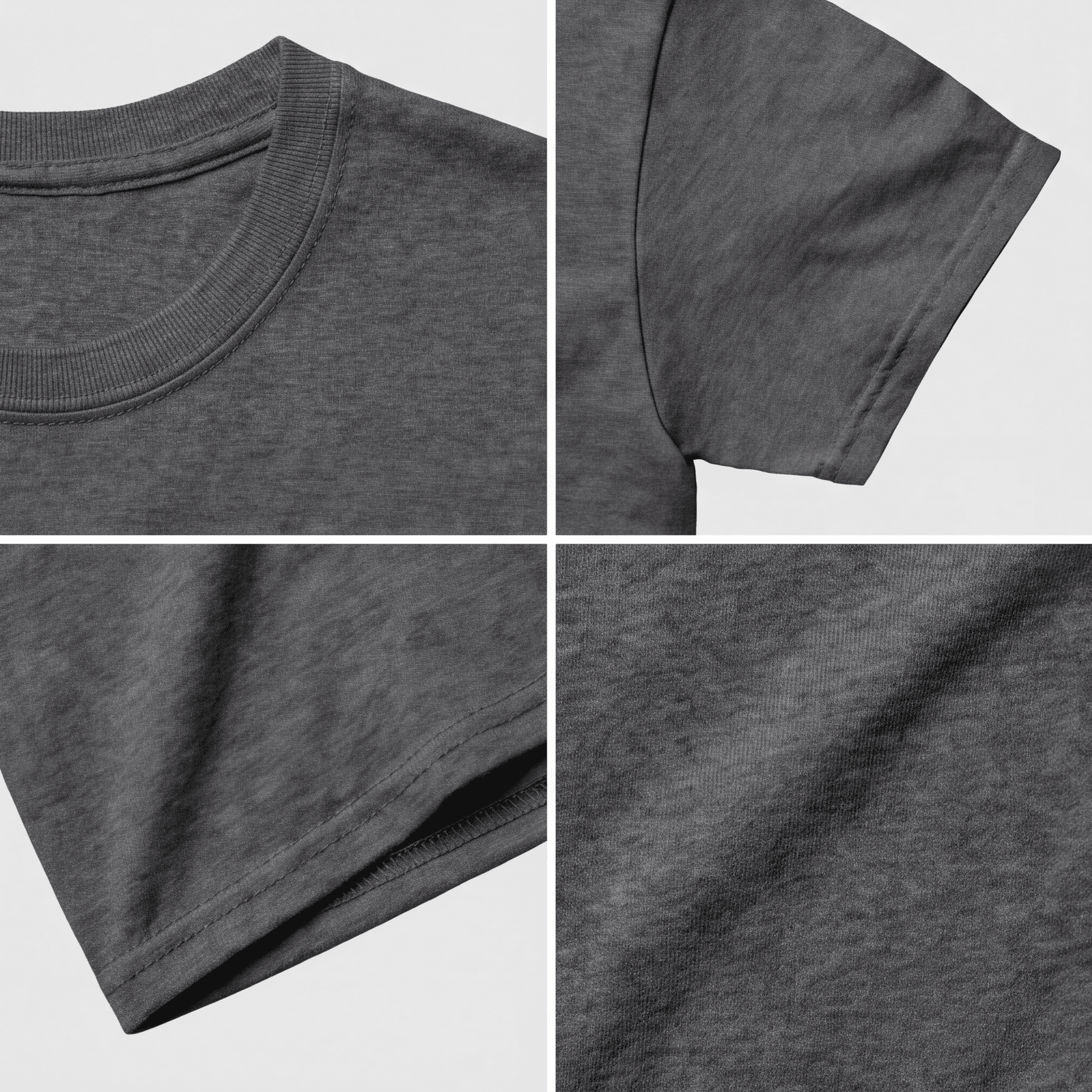

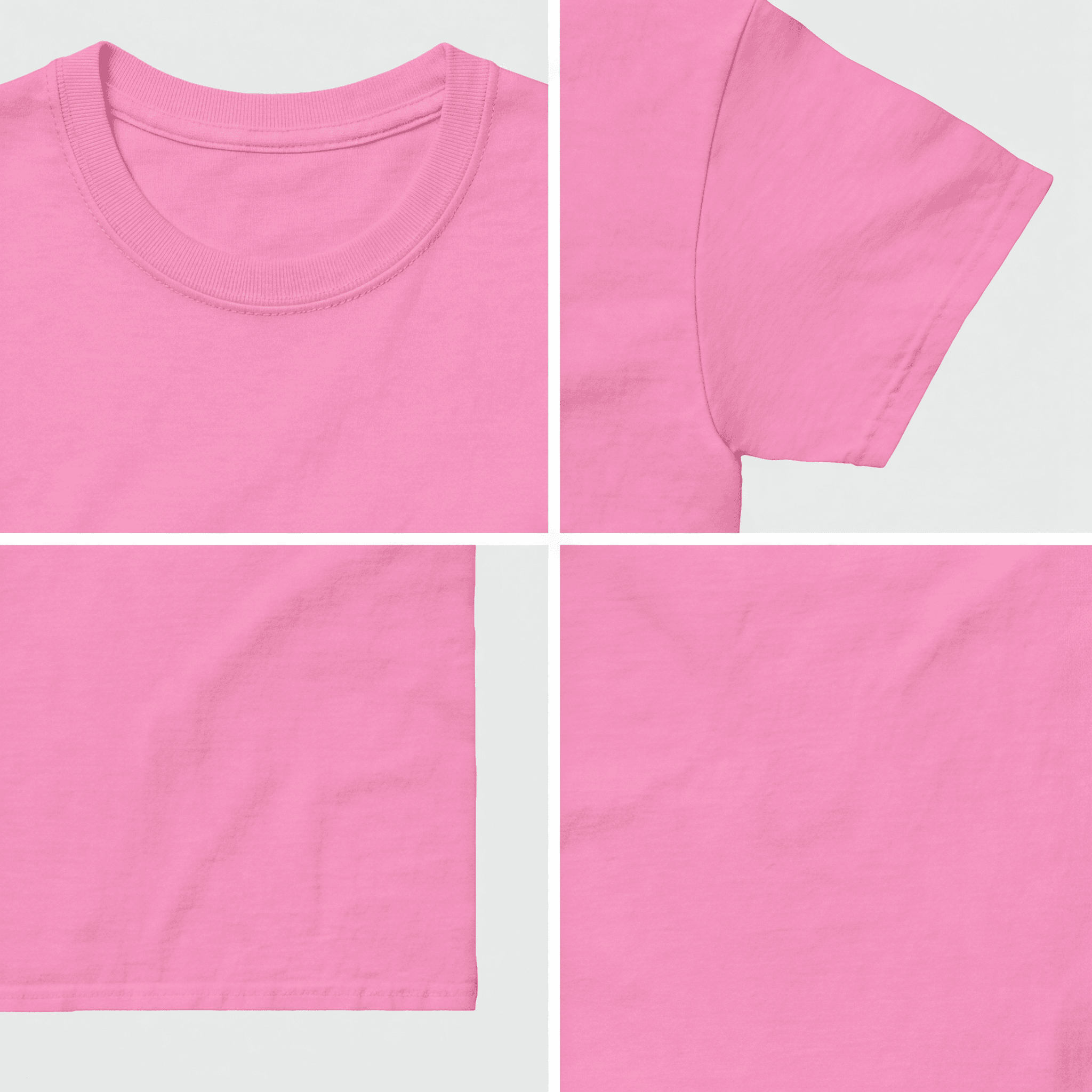

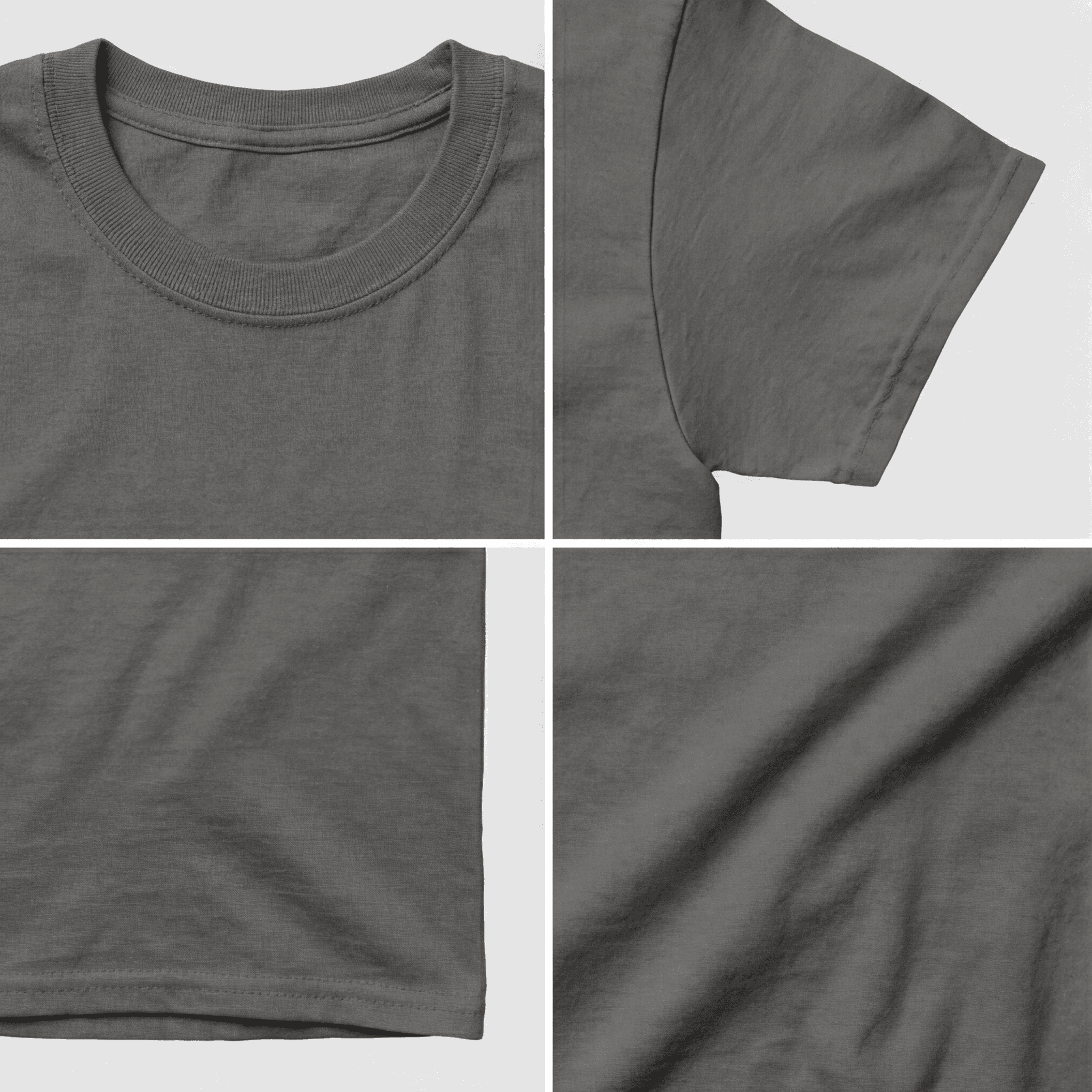

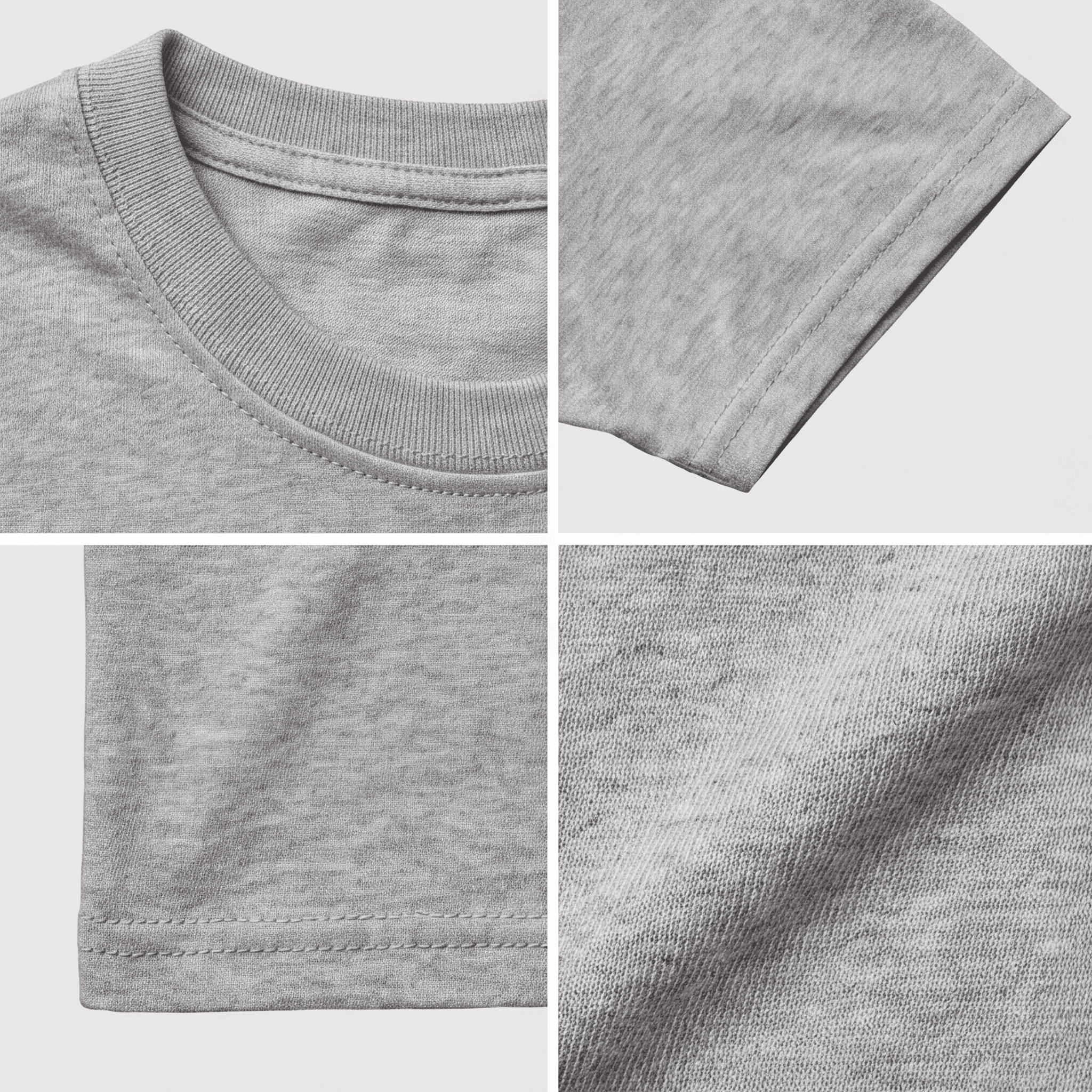

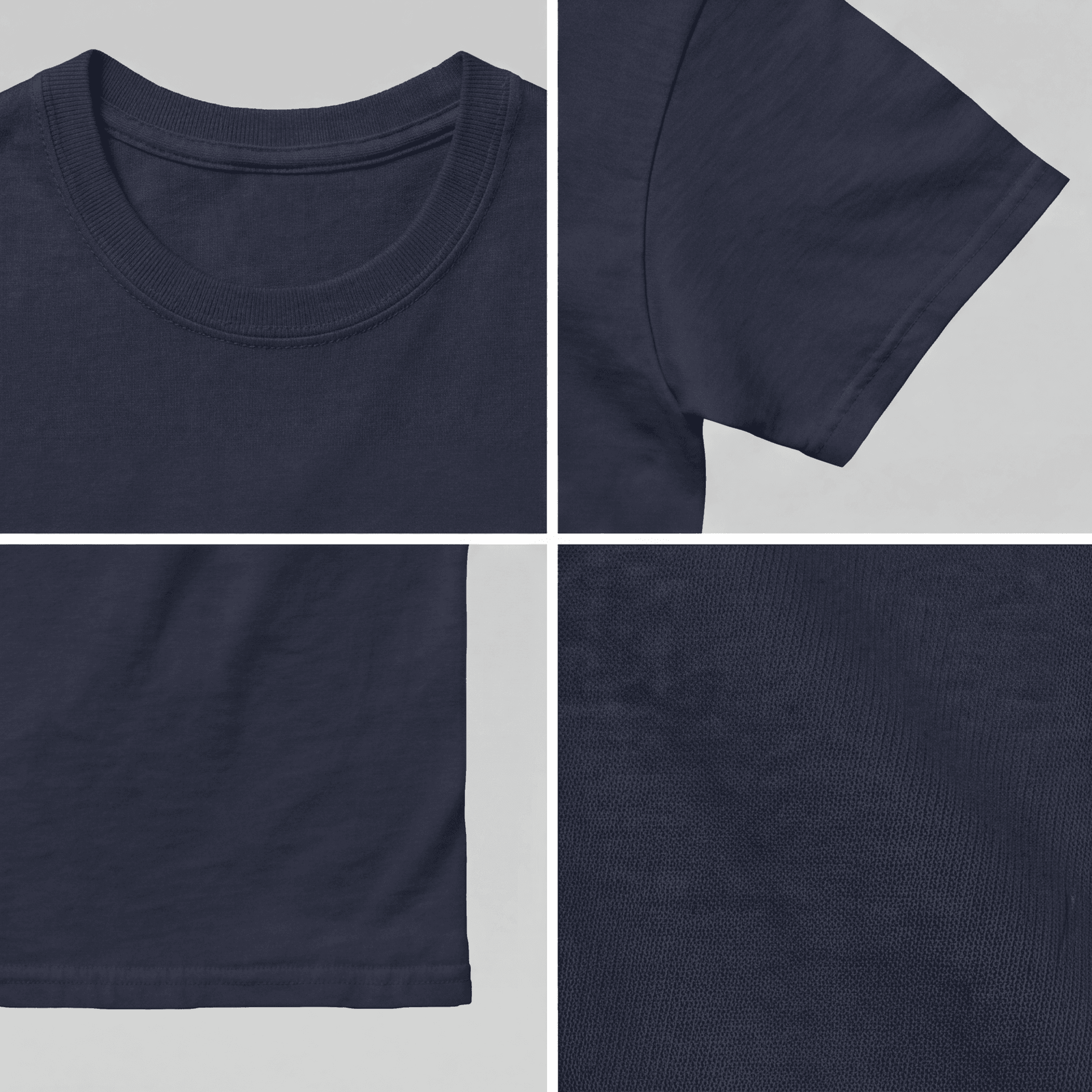

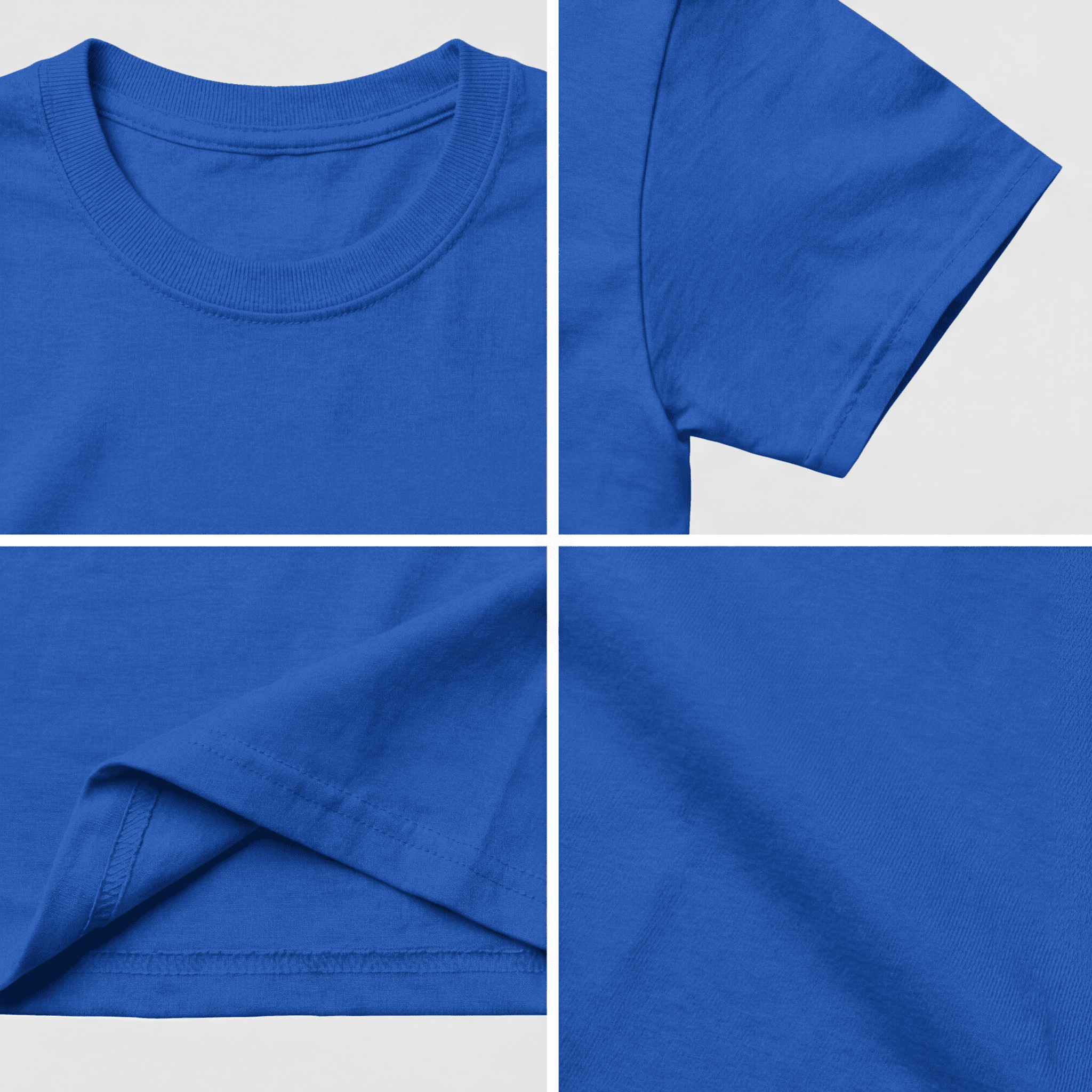

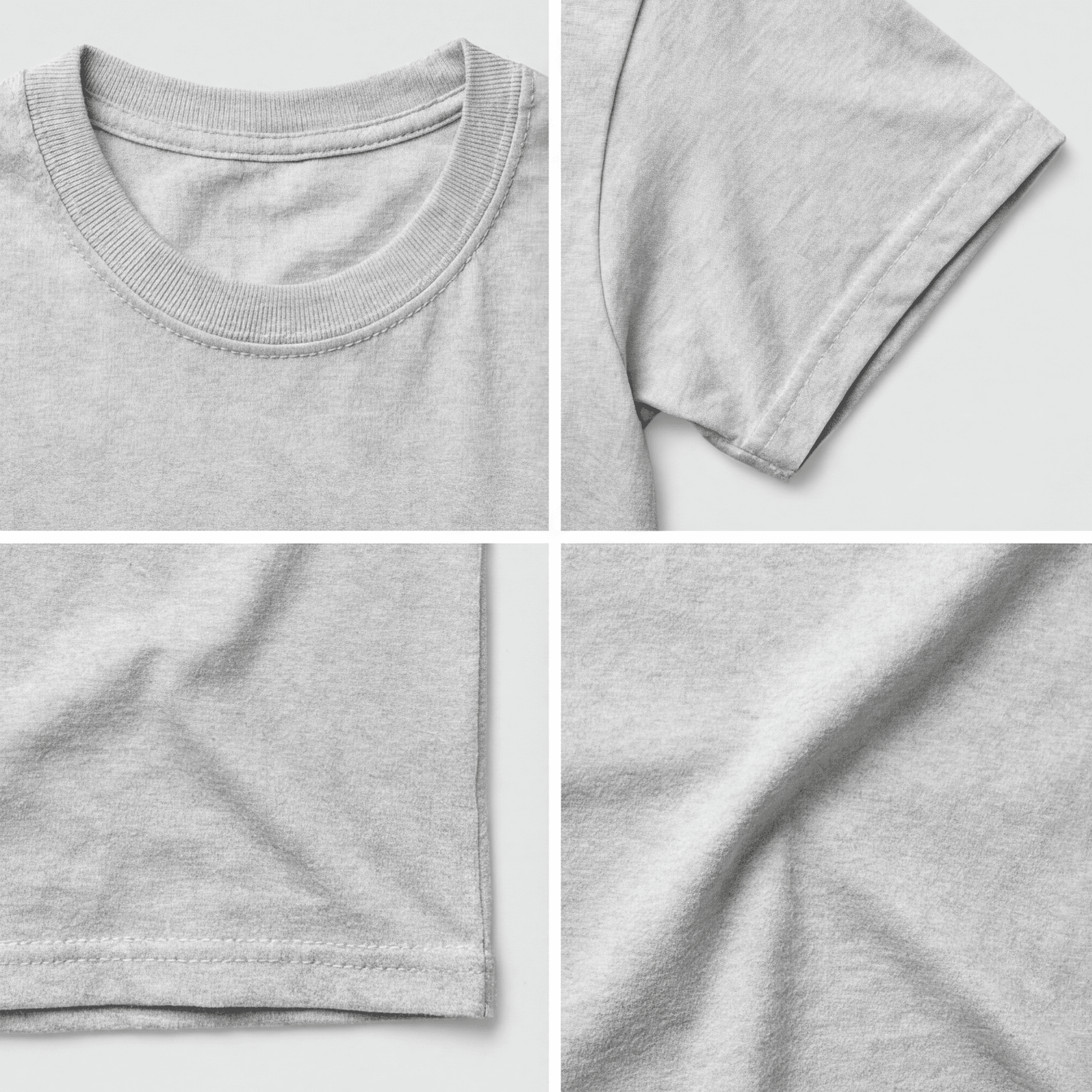

Details that matter

How it is made.

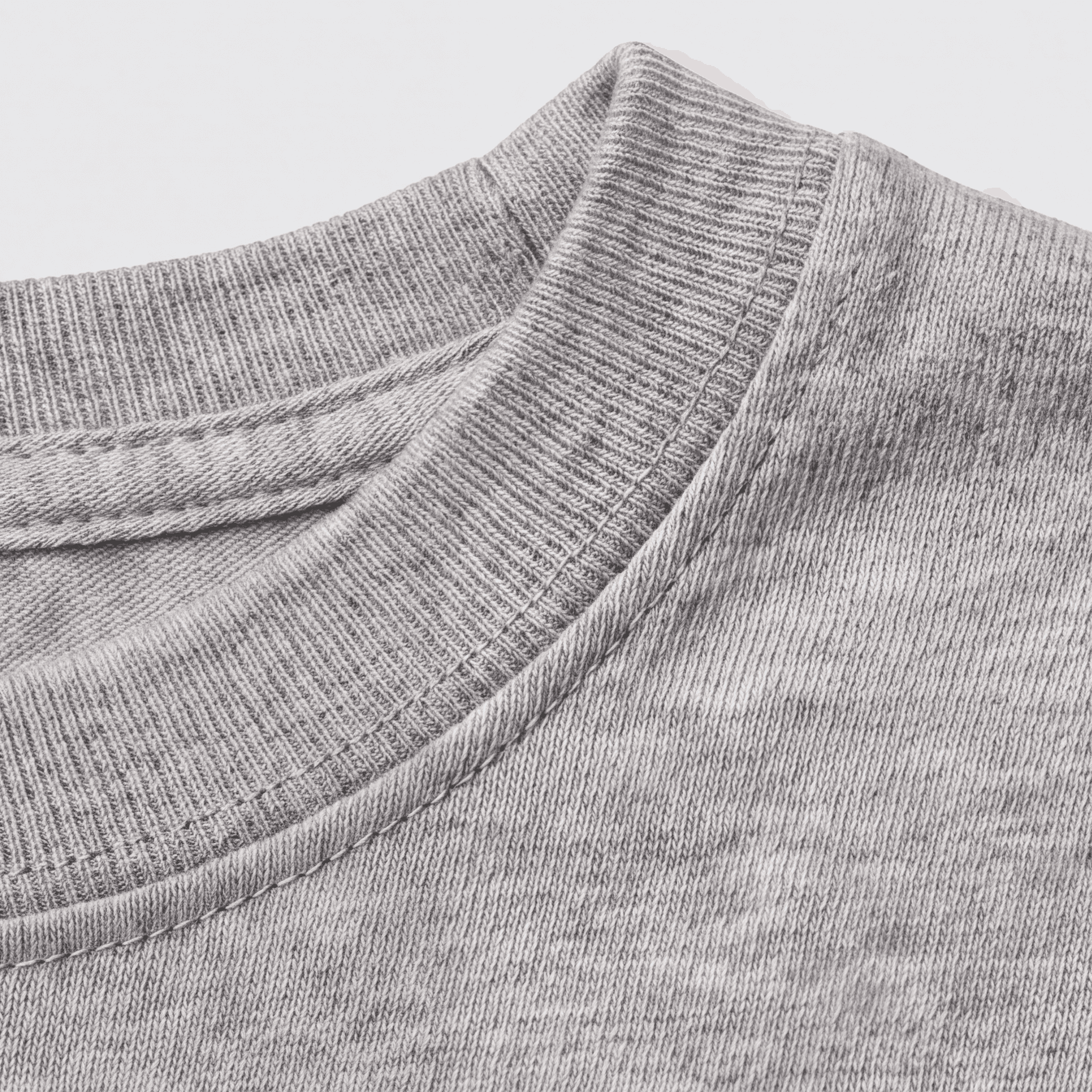

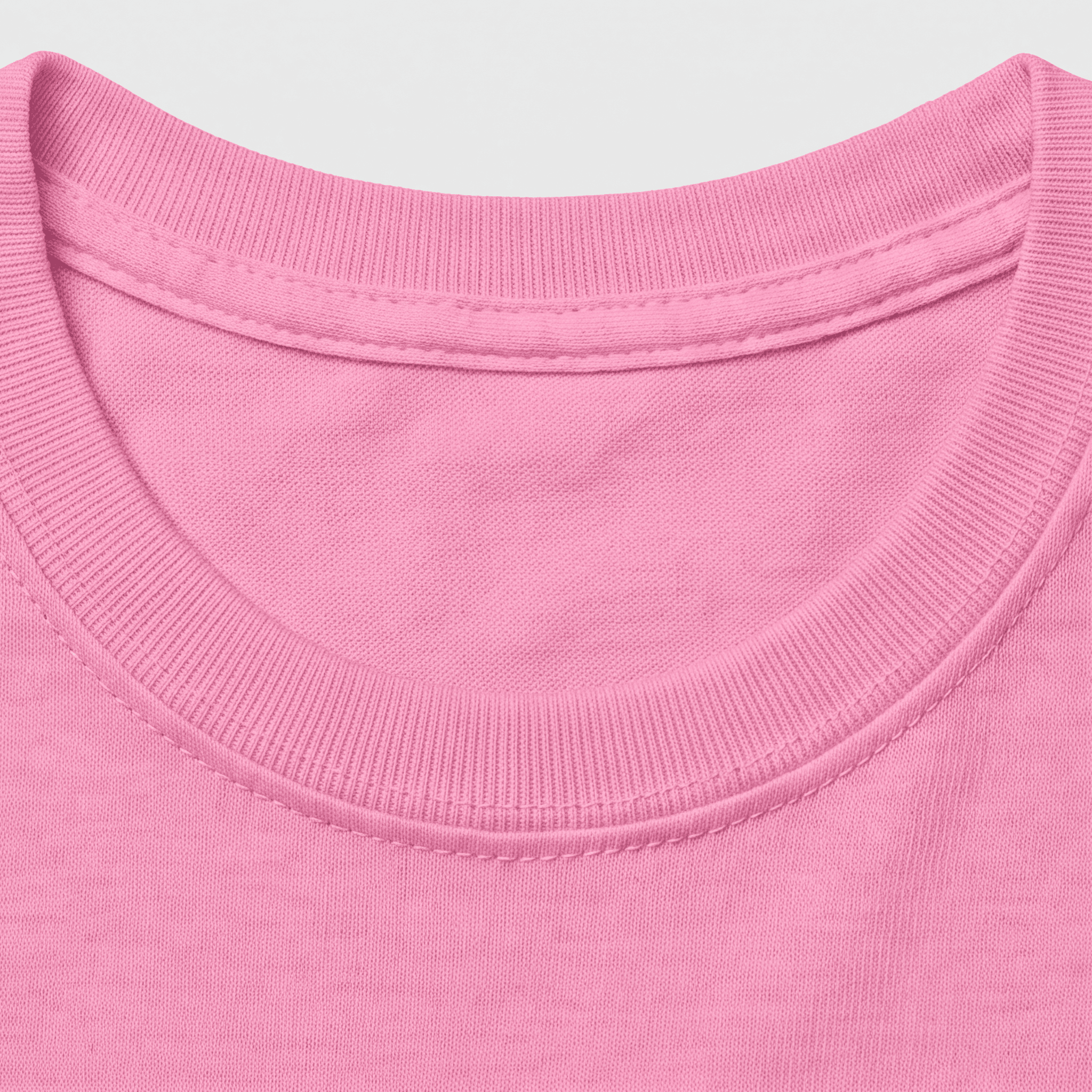

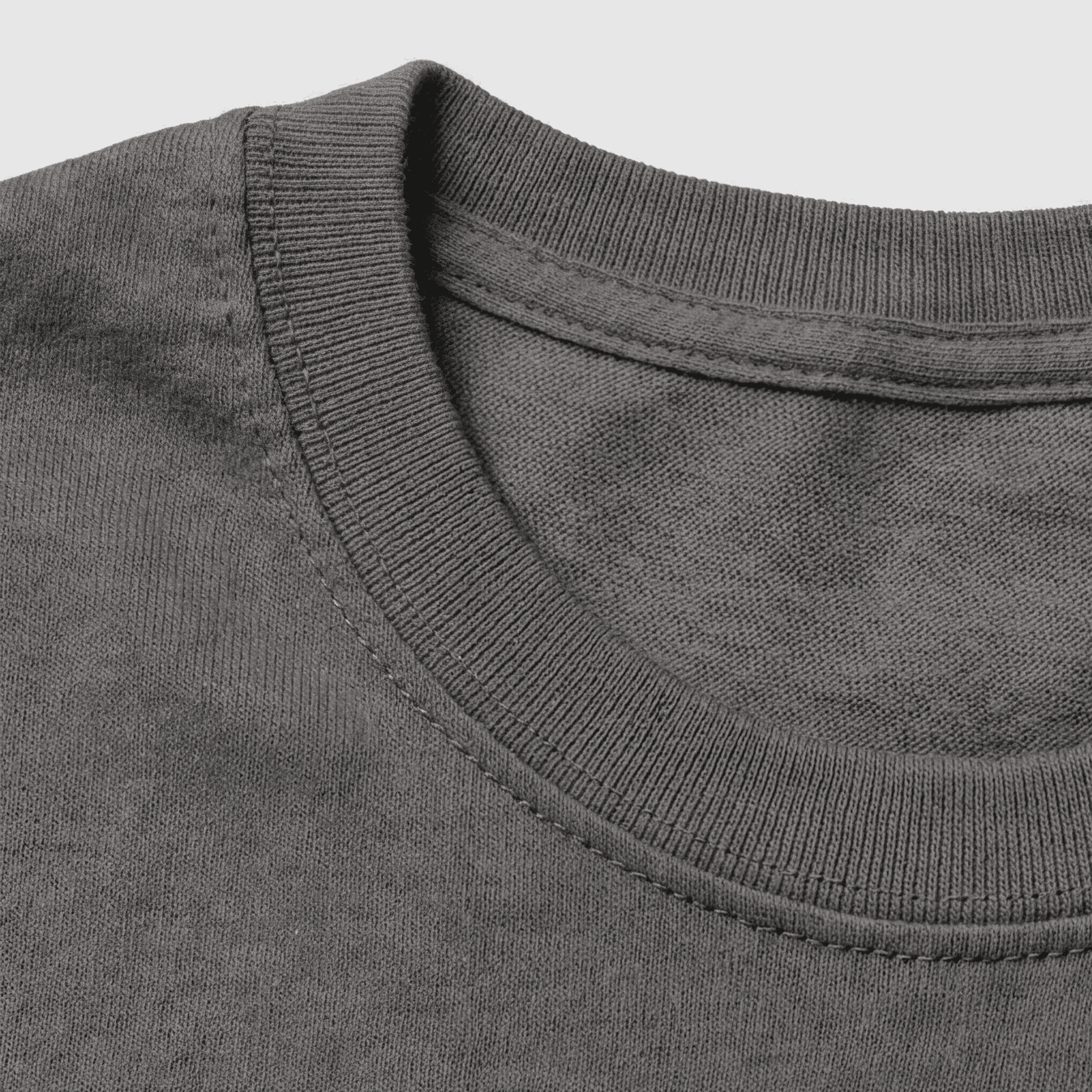

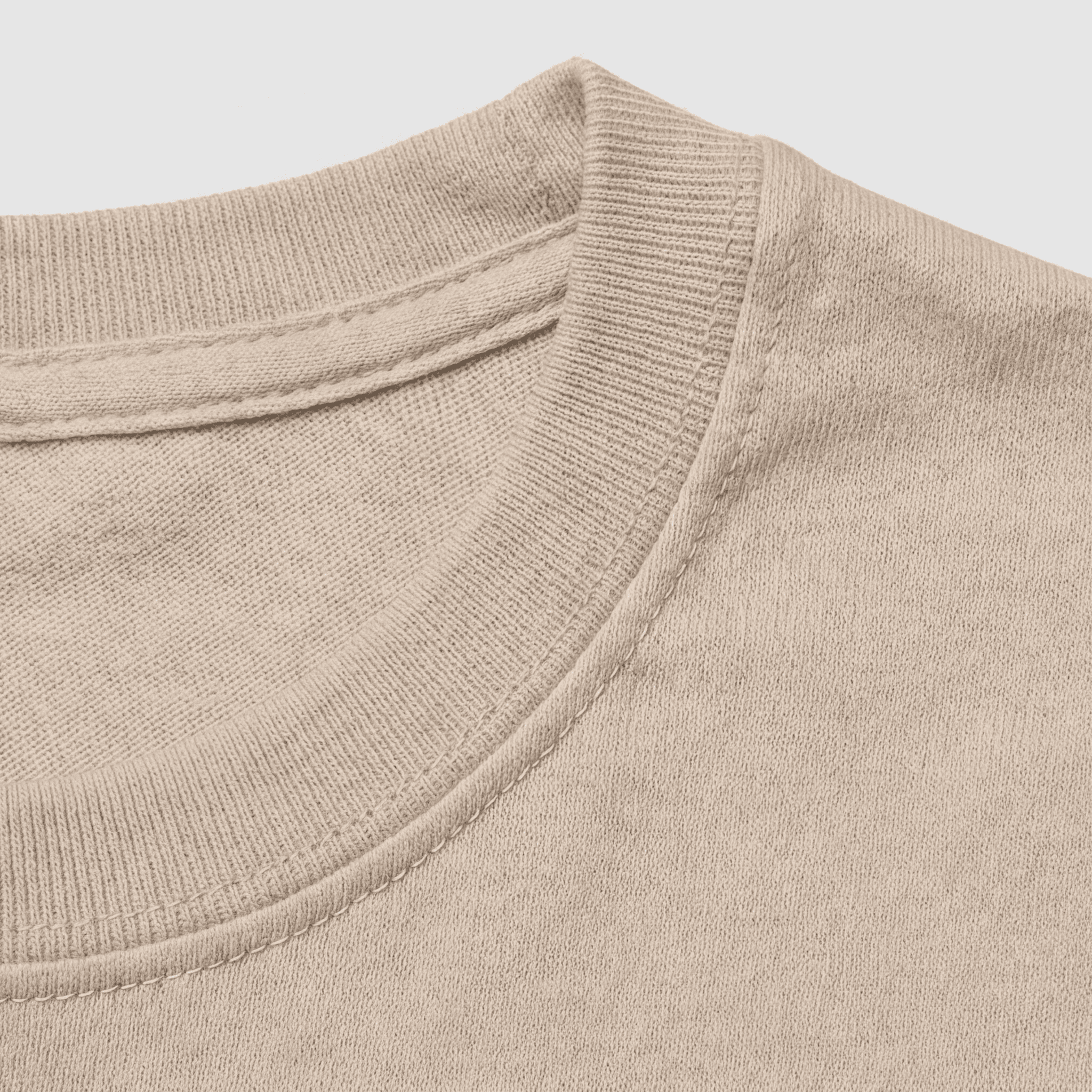

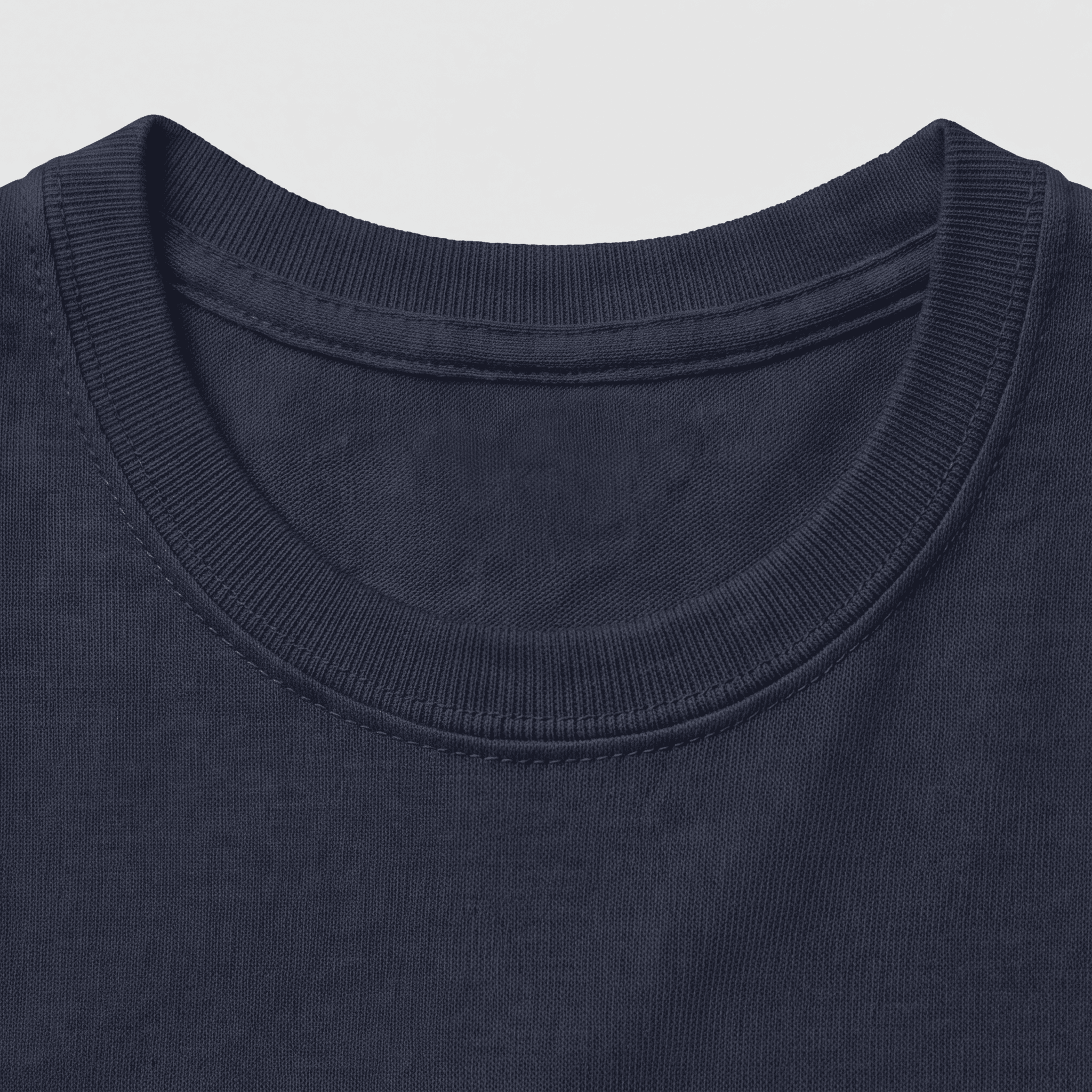

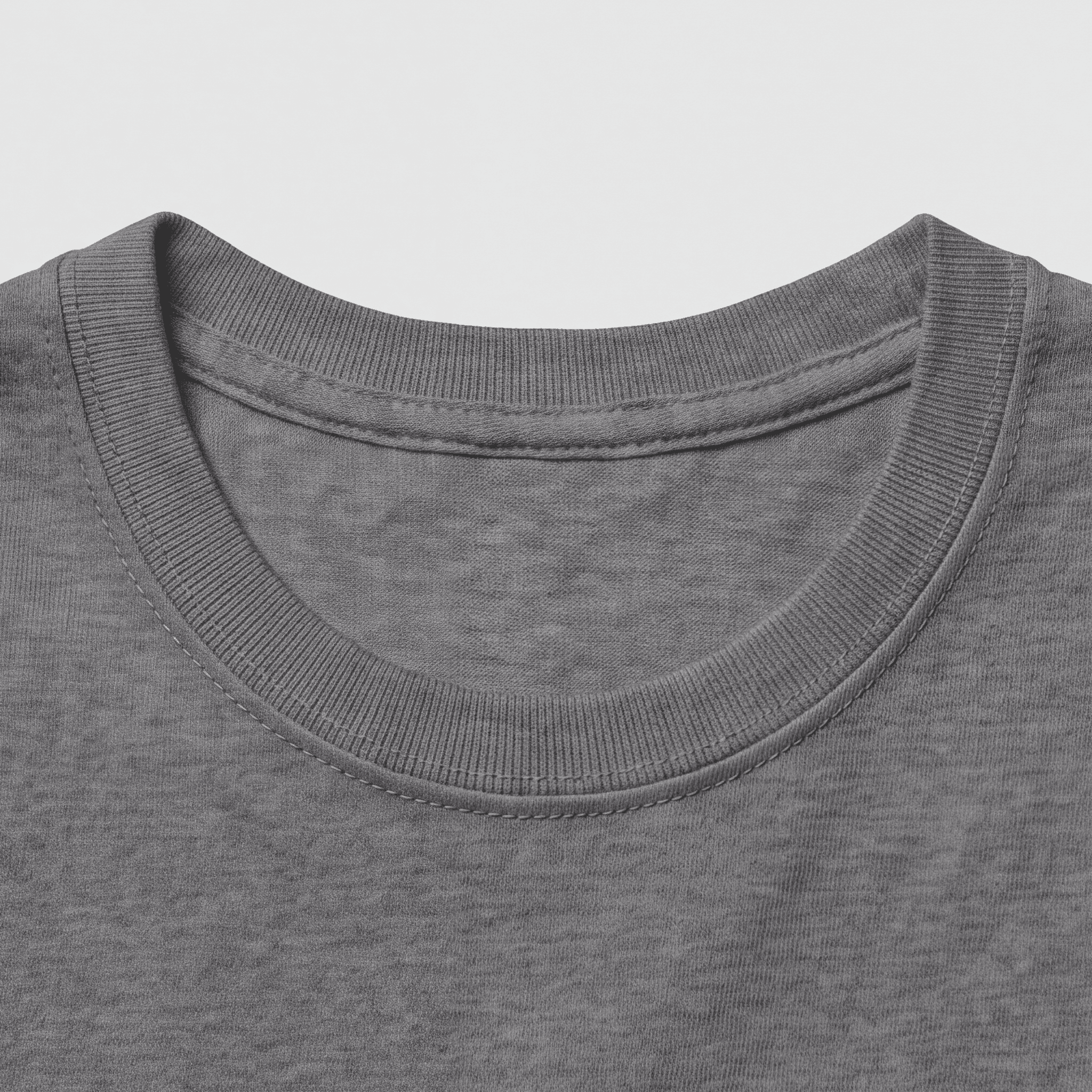

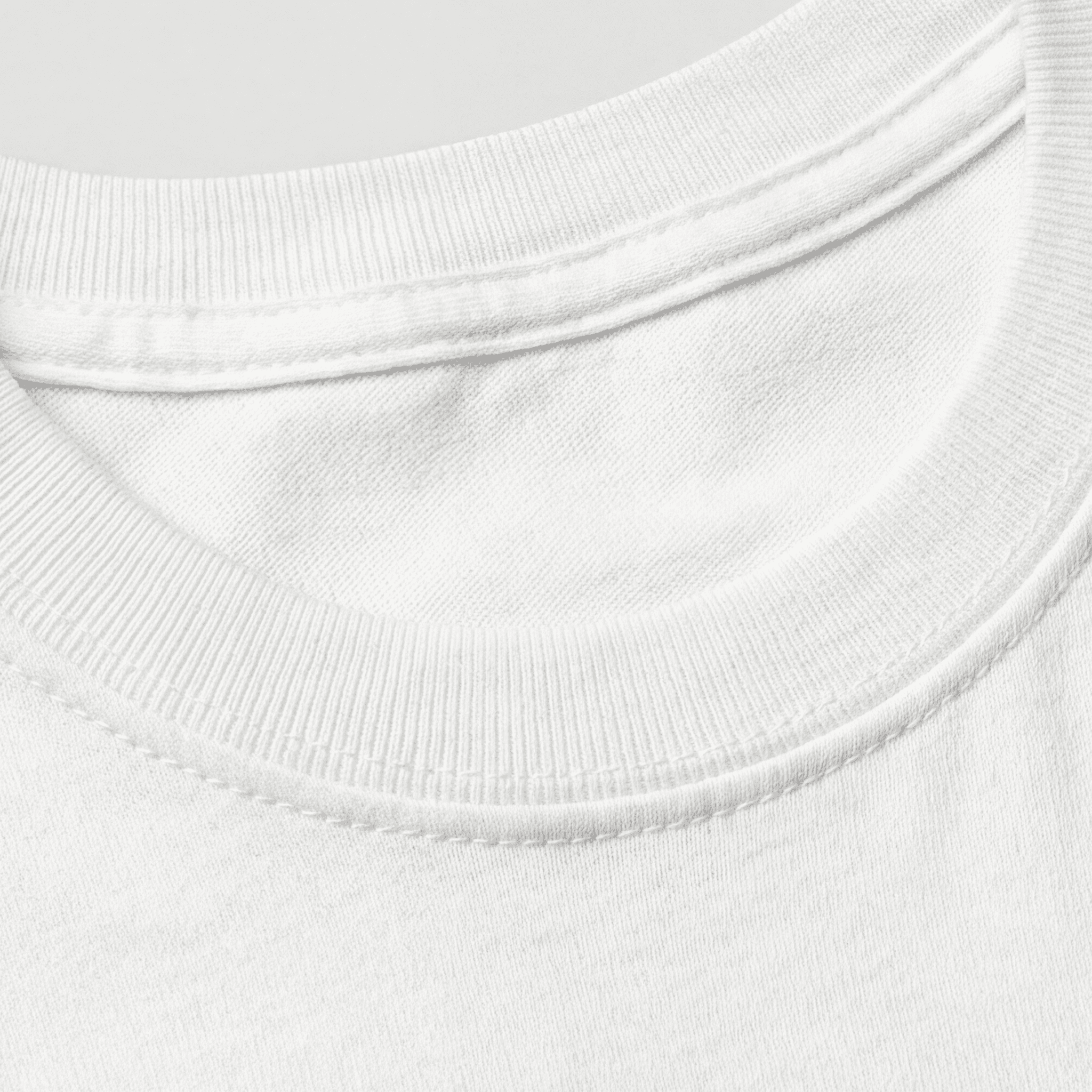

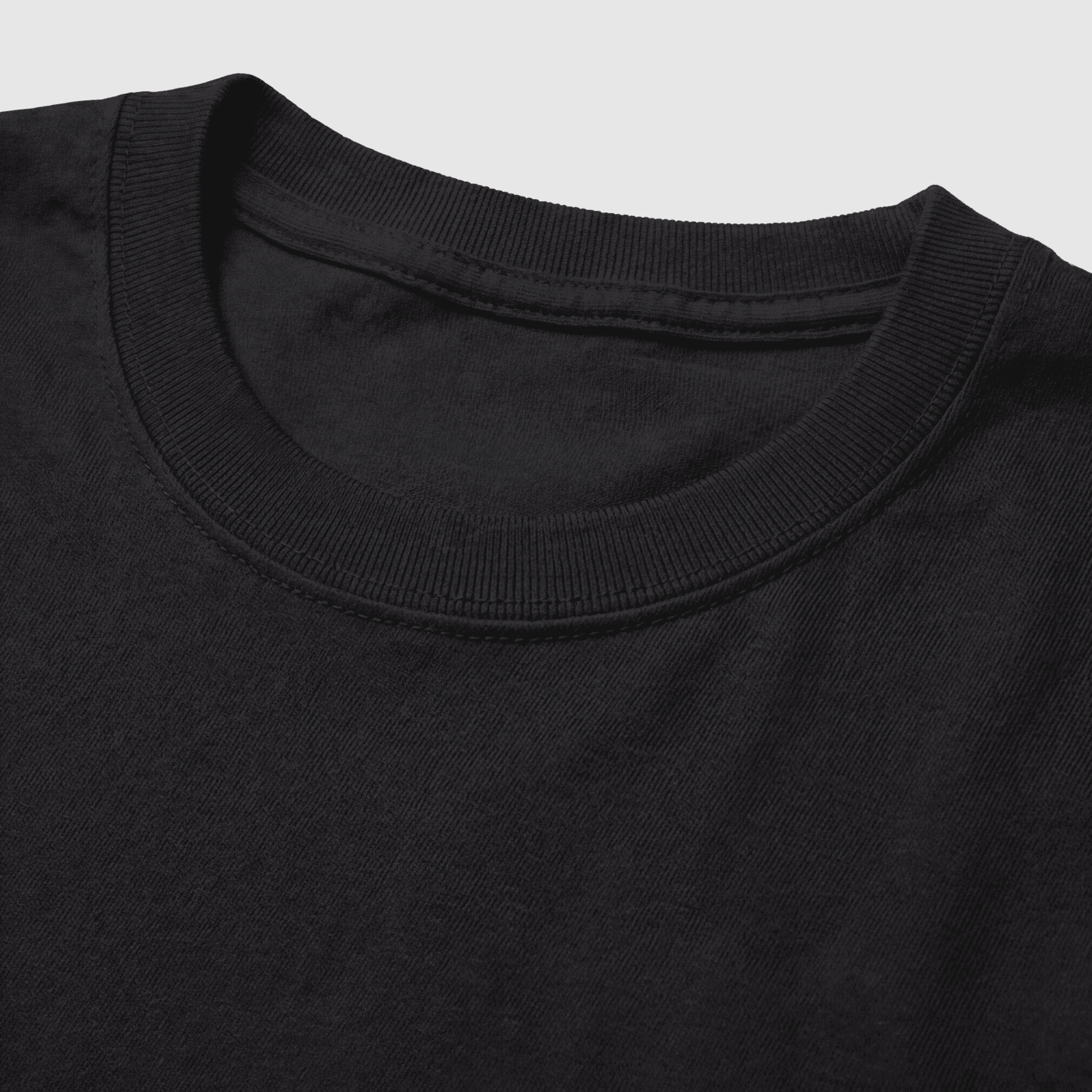

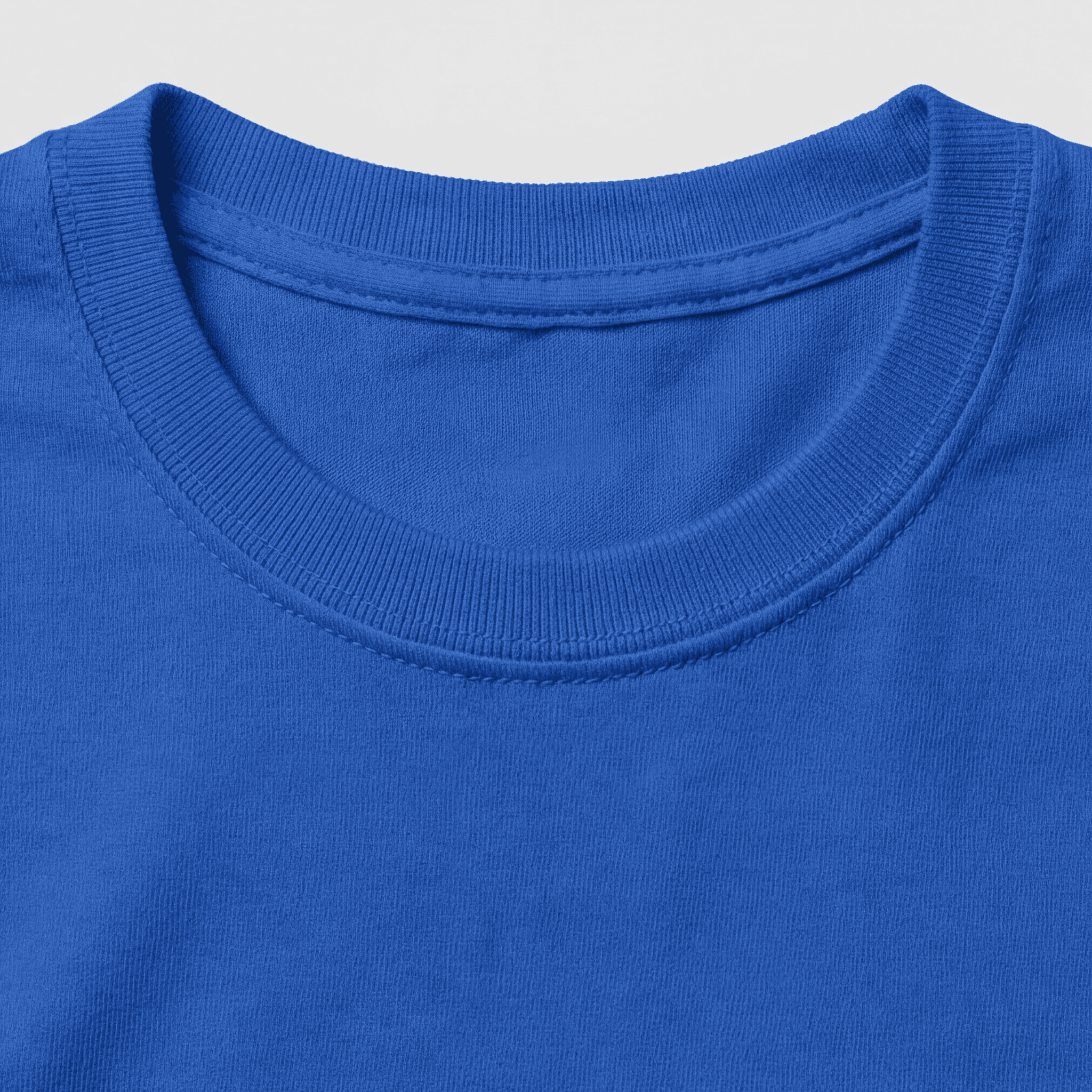

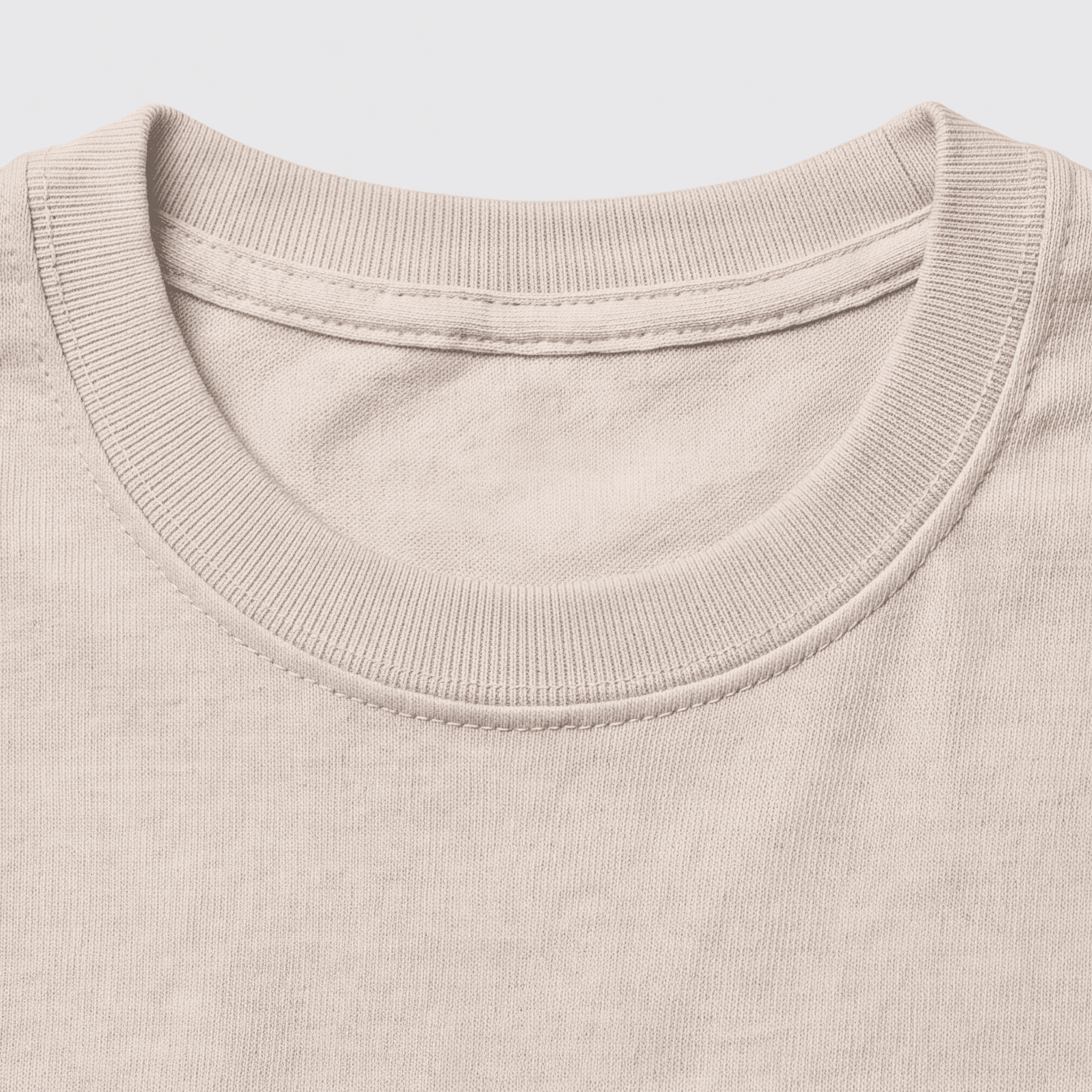

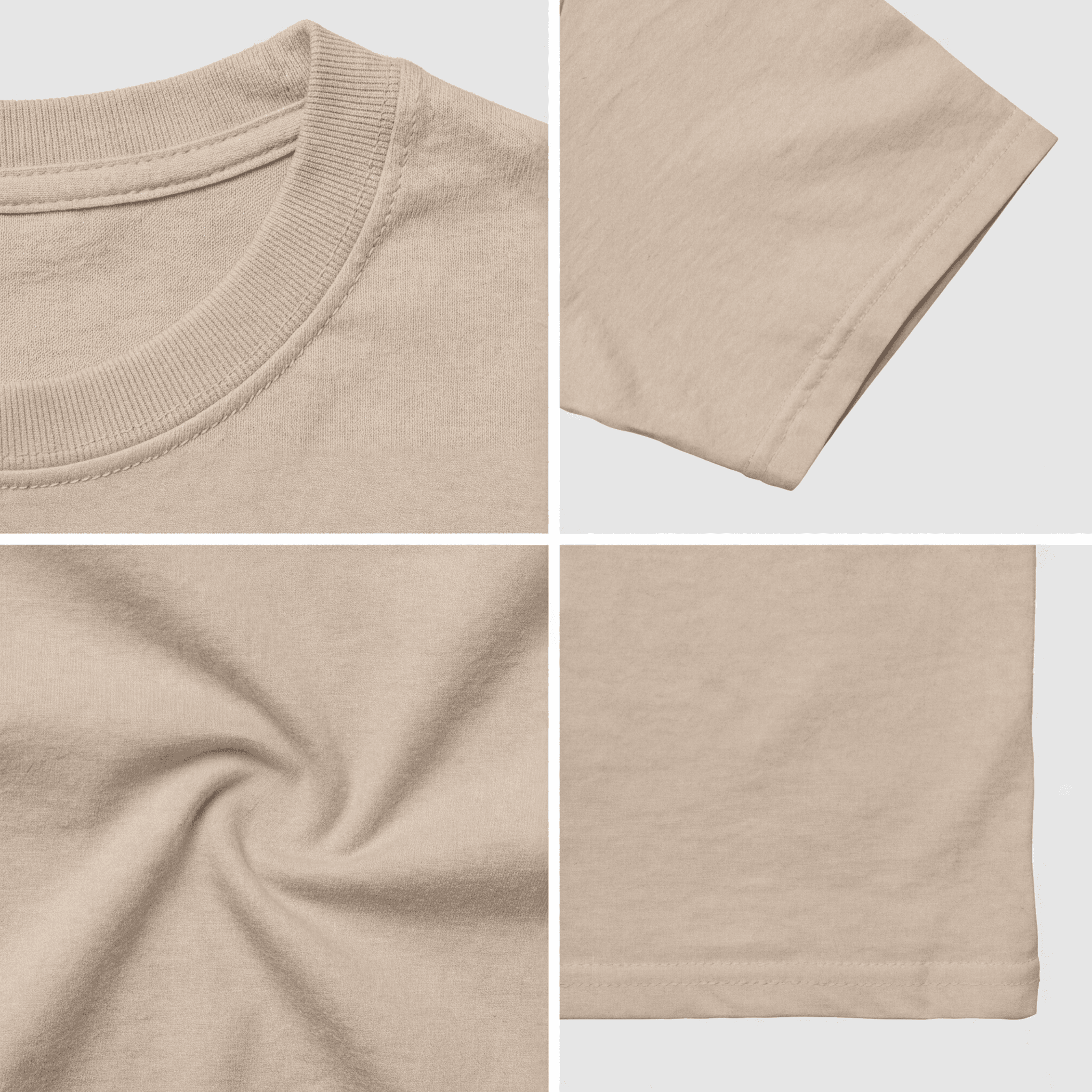

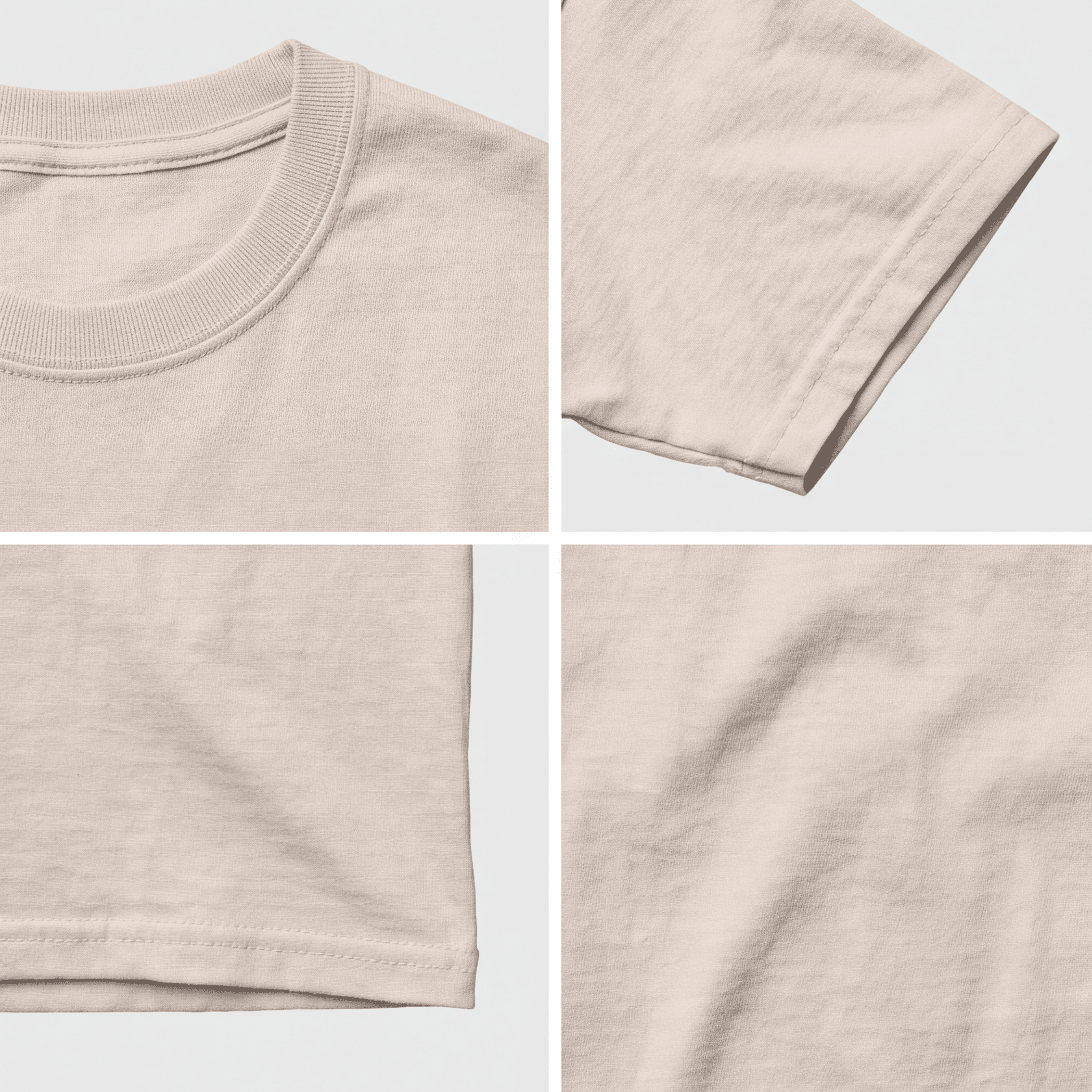

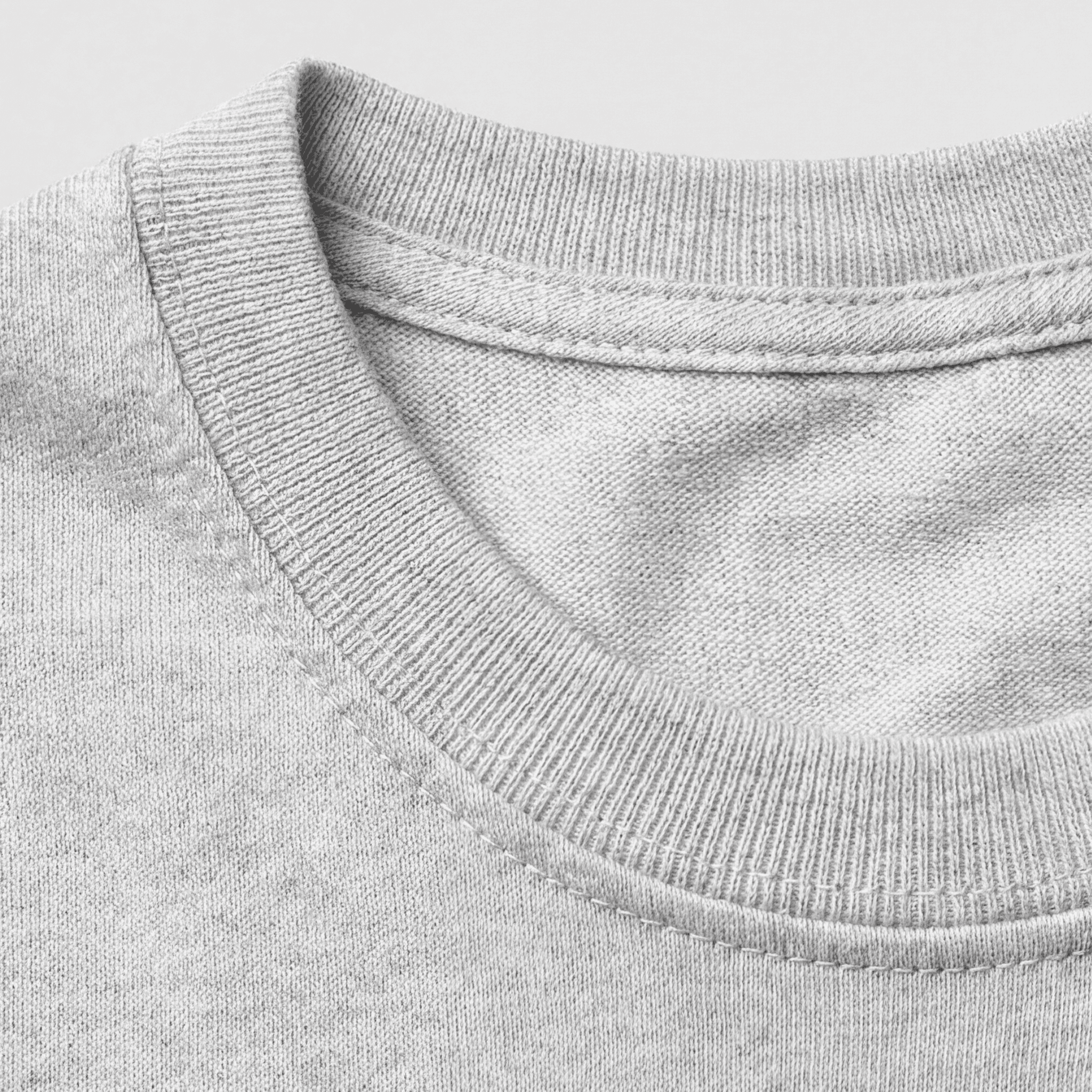

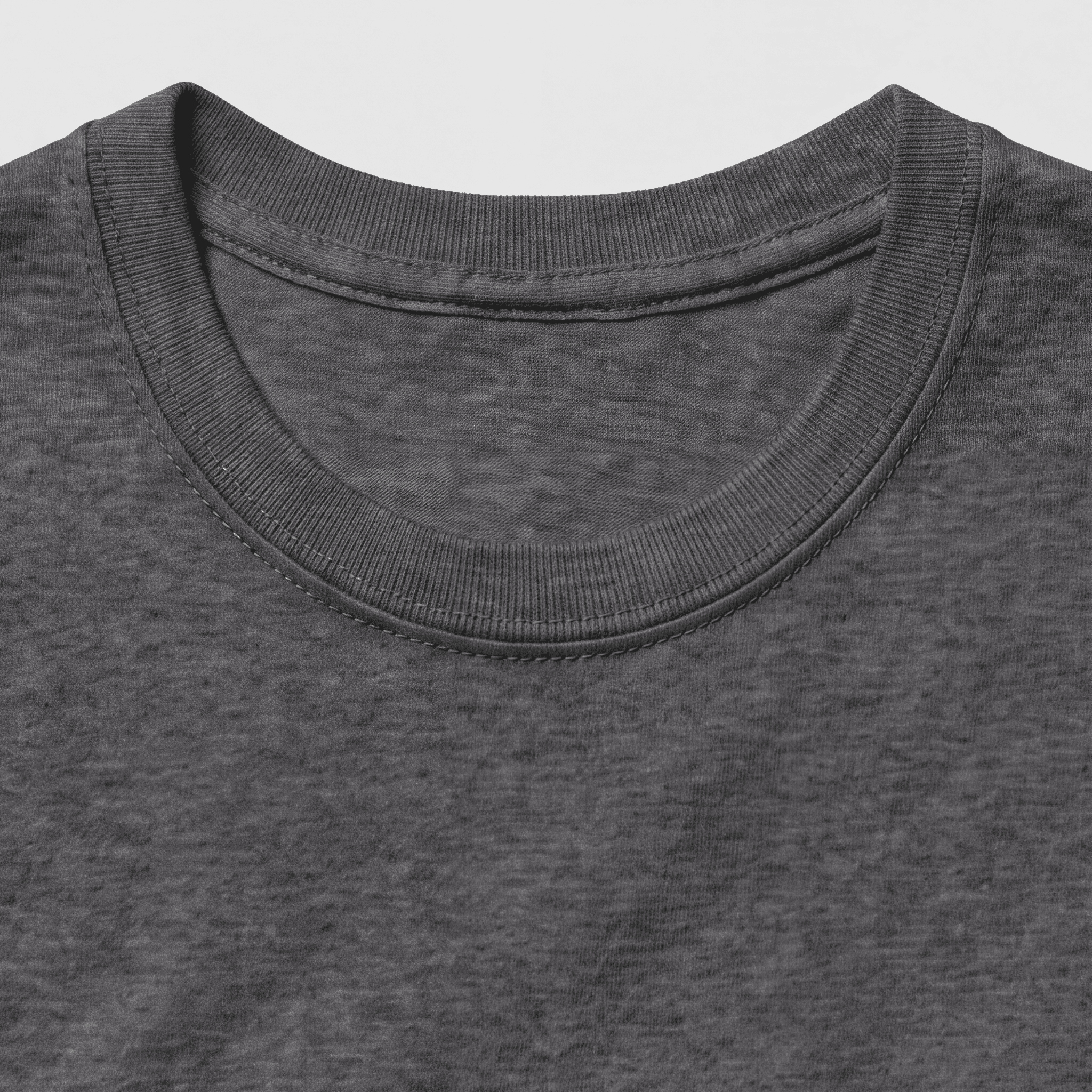

Collar
Seamless rib collar, non-topstitched, classic width, 7/8 in · Double-needle
Neck and shoulder taping
Taped neck and shoulders (shoulder-to-shoulder) for stress-point resilience
Body side seams
Tubular / seamless body with no side seams
Sleeve hem
Double-needle stitched sleeves · Double-needle
Bottom hem
Double-needle stitched bottom hem · Double-needle
Label
Recycled high-performing black tear-away label

Build with this garment

Assets & integration.

Research availability does not establish asset licensing or simulation readiness.

No technical assets are documented in the public research. Discuss access and validation for your intended workflow.

Read the API documentation ↗

Check the evidence

Evidence checked Sep 16, 2026

Evidence & validation.

Published specifications and measurements are reference evidence. They do not establish simulation accuracy, manufacturing tolerances or rights to redistribute an asset.

Full research JSON ↗Schema ↗
Research notes & open questions

OEKO-TEX certificate 168252 not verified in the official Label Check; validity/scope unconfirmed.

3XL-5XL centre-back sleeve length disagrees between two Gildan documents.

Grade rules, tolerances, MOQ and lead time are unpublished.

No published return or defect rate with a denominator for the 5000.
