Direct-to-garment print · sewn in 3D, XS to 2XL · size M: model r3, Nov 2, 2026

Next Level / 1533 · Women's / Ladies'

Next Level 1533 Women's Ideal Racerback Tank

Racerback tank · 3D model, sizes XS to 2XL

A 3D model to build from.

Use the documented construction, materials and measurements to scope a digital garment or product visualization workflow. Confirm asset access and validation for your application.

Self 3/8 in double-fold binding at armhole and neckline in matching colors; scoop neck with racerback; curved hem; side seams; tear-away label.[2][3][4]

Understand the constructionComponents, seams and material specifications ↗Work from measured proportionsSeparate body and finished garment references ↗Scope your digital garmentAsset access, usage rights and validation ↗
Design on it in Studio →

Give your agent the context.

Copy this brief into your agent. It includes selection guidance, tradeoffs and links to the full evidence.

Next Level 1533 Women's Ideal Racerback Tank · Full Markdown ↗

On a person

The 3D, rendered on our wearer.

Size XS, the blank in white, rendered from its 3D on our wearer: renders, not photographs.

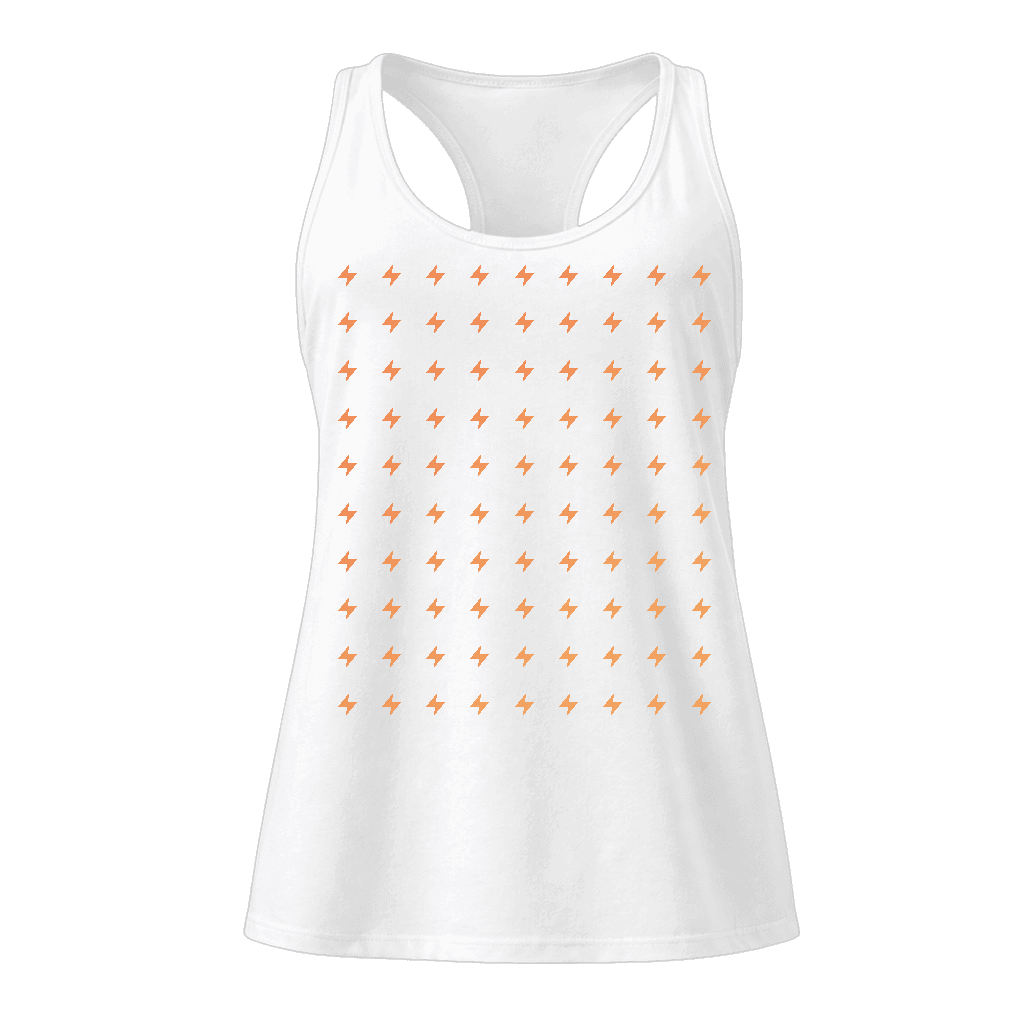

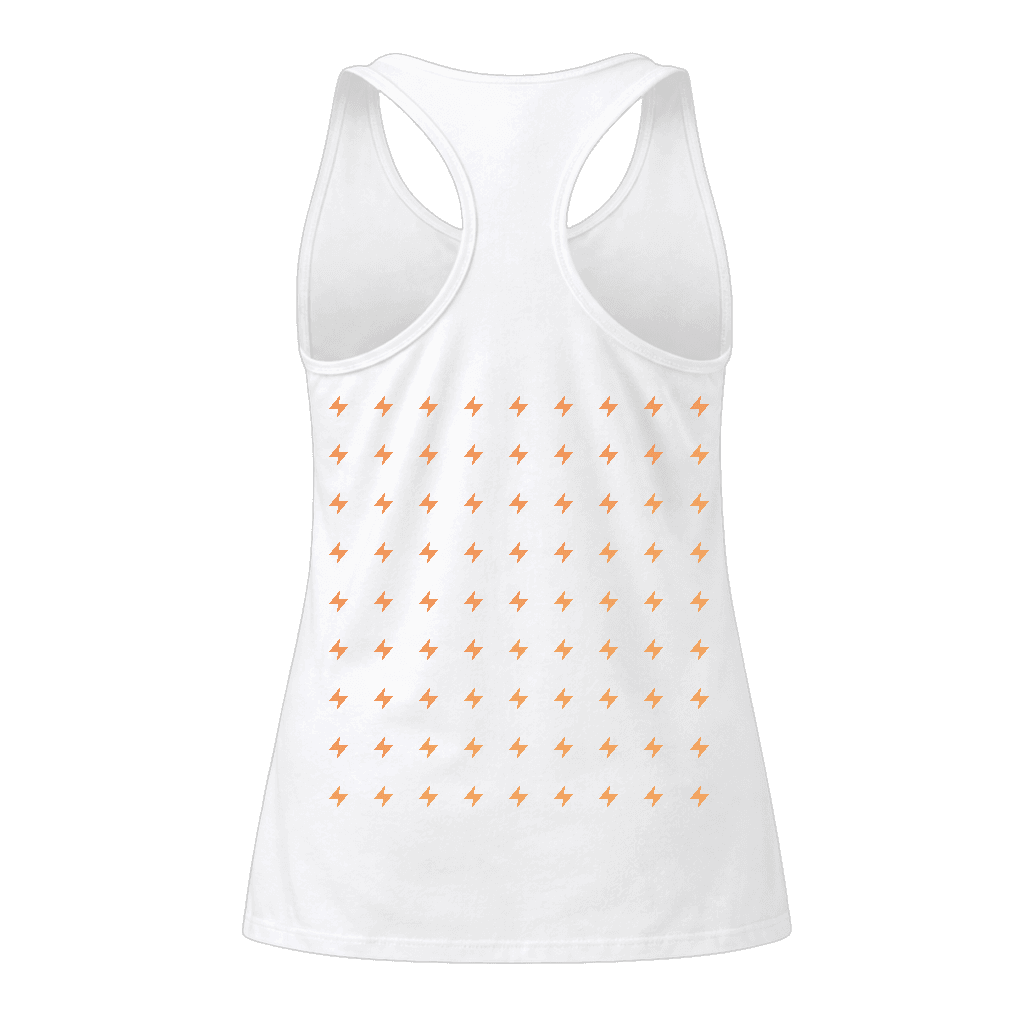

Next Level 1533 Women's Ideal Racerback Tank, size XS, Front view on a personFrontNext Level 1533 Women's Ideal Racerback Tank, size XS, Side view on a personSideNext Level 1533 Women's Ideal Racerback Tank, size XS, Back view on a personBackNext Level 1533 Women's Ideal Racerback Tank, size XS, Close-up view on a personClose-up

3D file

Take the 3D with you.

The sewn model at full resolution, in metres, as a GLB: its thickness, rib, drawcords and topstitching, laid out to print on, with a material for each colour. Not the sewing pattern.

A mockup generator, a SaaS or an API, or AI training: by contract only, write to us. Neither licence lets you share or resell the file, or take a pattern from it. The licences · Refunds and cancelling

Your first model is free with an account: one size, Standard licence.

Material specification

Materials by color family.

Compare the composition for the color you have in mind.

Composition
60% Combed Ring-Spun Cotton / 40% Polyester
Fabric weight
135 g/m²
Fabric
jersey knit, 30 singles
Handfeel · source description
Maker and distributors describe the fabric as soft, lightweight cotton-poly jersey
BlackWhiteDark GrayMintIndigoRoyalDesert PinkTurquoiseTahiti BlueLilacMidnight NavyRaspberryMilitary GreenKelly GreenBanana CreamCancunCardinalSilverAntique GoldRedHeather GrayHot PinkLight OrangePurple RushSolid Warm GraySolid Scarlet

Researched color families, not live supplier stock. Colors can use different blends.

Shape & proportion

Dimensions & size references.

Fitted

Manufacturer range: XS · S · M · L · XL · 2XL

The 3D, measured flat · cm
MeasurementXSSMLXL2XL
Chest width (flat)2.5 cm below the underarm, the front and back averaged35.237.840.342.945.448.1
Body length (from HPS)from the high point of the shoulder to the hem64.666.167.769.370.972.5

Research reference 3 and Research reference 4 measure 3.3 to 3.4 cm longer than the 3D.

Each source is kept separate. Body measurements and finished garment measurements are not interchangeable.

Details that matter

How it is made.

Armhole and neckline binding
Self 3/8 in double-fold self-binding in matching colors · double-fold self-binding
Neckline / back
Scoop neck with racerback cut
Hem
Curved bottom hem
Side construction
Side-seamed (not tubular) · side seams
Neck label
Tear-away label for scratch-free wear · tear-away · removable

Build with this garment

Assets & integration.

Research availability does not establish asset licensing or simulation readiness.

No technical assets are documented in the public research. Discuss access and validation for your intended workflow.

Read the API documentation ↗

Check the evidence

Evidence checked Sep 16, 2026

Evidence & validation.

Published specifications and measurements are reference evidence. They do not establish simulation accuracy, manufacturing tolerances or rights to redistribute an asset.

Full research JSON ↗Schema ↗
Research notes & open questions

No GTIN/variant identifiers captured.

No Beforewear technical assets.

Amazon independent review bodies unread.

Care wording is only a distributor blurb.
